1986242-3 - TE Connectivity

Description: Body Features: Primary Product Color Green | Product Orientation Vertical | Configuration Features: Stacked Levels Without | Wire Entry Location Side | Stacking Configuration Side Stackable | Wire Entry Angle 90° | Number of Positions 3 | Number of Rows 1 | Contact Features: Contact Base Material Brass | Contact Current Rating (Max) 125 AMP | Contact Mating Area Plating Material Tin | Dimensions: Wire Size 20 – 1 AWG | Wire Size .5 – 41 MMSQ | Electrical Characteristics: Operating Voltage 600 VAC | Hou

Download 1986242-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1986242-3 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

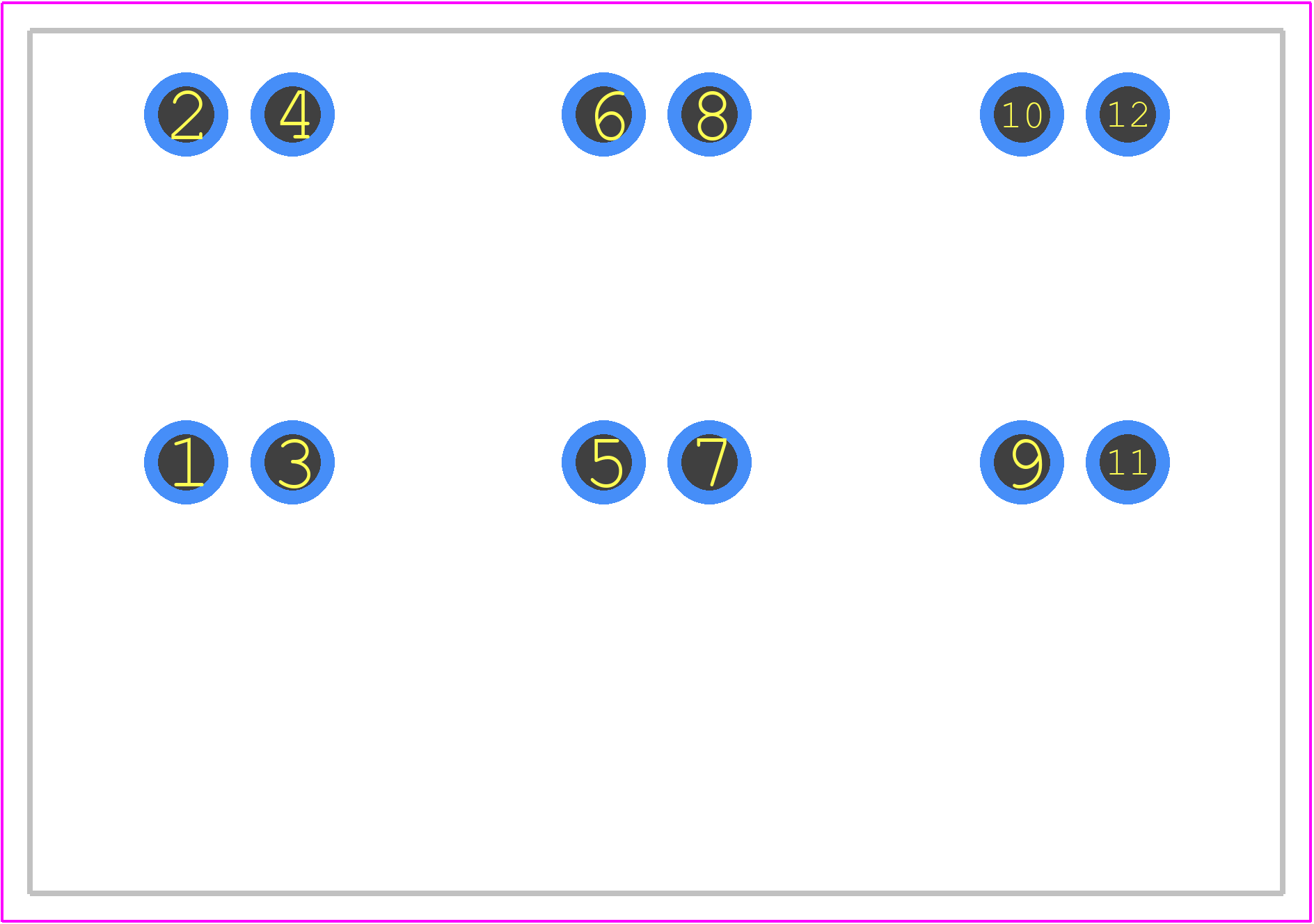

1986242-3 - TE Connectivity PCB footprint - Other - Other - 1986242-3-2
click to zoom
3D Models
1986242-3 - TE Connectivity - 3D model - Other - 1986242-3-2
click to zoom

1986242-3 Details

  • Manufacturer Part Number:

    1986242-3

  • Brand Name:

    TE Connectivity

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0; PA 66

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    3

  • Rated Current:

    125 A

  • Rated Voltage:

    600 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    41 mm2

  • Wire Gauge:

    1 AWG

1986242-3 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 1986242-3 connector is designed to withstand high-vibration environments, making it suitable for use in applications such as industrial machinery, transportation, and aerospace.
  • Yes, the 1986242-3 connector is designed for automated assembly and can be easily integrated into high-volume manufacturing processes.
  • The operating temperature range for the 1986242-3 connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 1986242-3 connector is designed to withstand harsh environments, including high humidity and exposure to chemicals, making it suitable for use in industrial, transportation, and aerospace applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1986242-3 Overview

Use the download button to access the 1986242-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19862, or try a keyword search, such as Terminals and Terminal Blocks

About TE Connectivity
