1986718-7 - TE Connectivity

Description: Body Features: Primary Product Color Green | Product Orientation Vertical | Configuration Features: Number of Rows 1 | Number of Positions 7 | Stacking Configuration Side Stackable | Contact Features: Contact Mating Area Plating Material Tin | Contact Base Material Copper Alloy | Contact Mating Area Length .417 INCH | Contact Mating Area Length 10.6 MM | Contact Current Rating (Max) 2 AMP | Dimensions: Wire Size .5 – 1.5 MMSQ | Wire Size 14 – 26 AWG | Electrical Characteristics: Operating Voltage 150 VA

Download 1986718-7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1986718-7 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

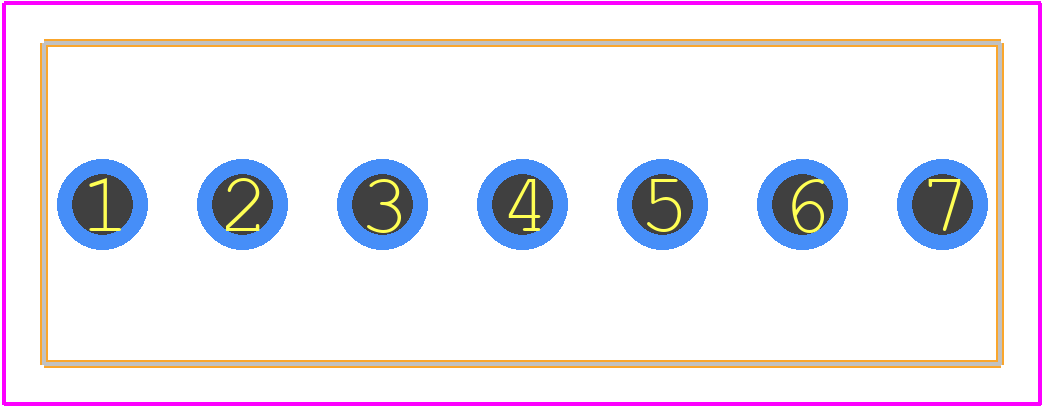

1986718-7 - TE Connectivity PCB footprint - Other - Other - 1986718-7-1
click to zoom
3D Models
1986718-7 - TE Connectivity - 3D model - Other - 1986718-7-1
click to zoom

1986718-7 Details

  • Manufacturer Part Number:

    1986718-7

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    TE Connectivity

  • Mounting Type:

    BOARD

  • Number of Rows:

    1

  • Number of Ways:

    7

  • Rated Current:

    2 A

  • Rated Voltage:

    150 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    14 AWG
