1986775-7 - TE Connectivity

Description: Body Features: Primary Product Color Green | Product Orientation Vertical | Configuration Features: Wire Entry Location Side | Number of Rows 2 | Stacking Configuration Side Stackable | Wire Entry Angle 90° | Number of Positions 7 | Contact Features: Contact Current Rating (Max) 15 AMP | Contact Mating Area Plating Material Tin | Contact Base Material Copper Alloy | Dimensions: Wire Size 20 – 1 AWG | Wire Size .5 – 41 MMSQ | Electrical Characteristics: Operating Voltage 300 VAC | Housing Features: Cent

Download 1986775-7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1986775-7 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

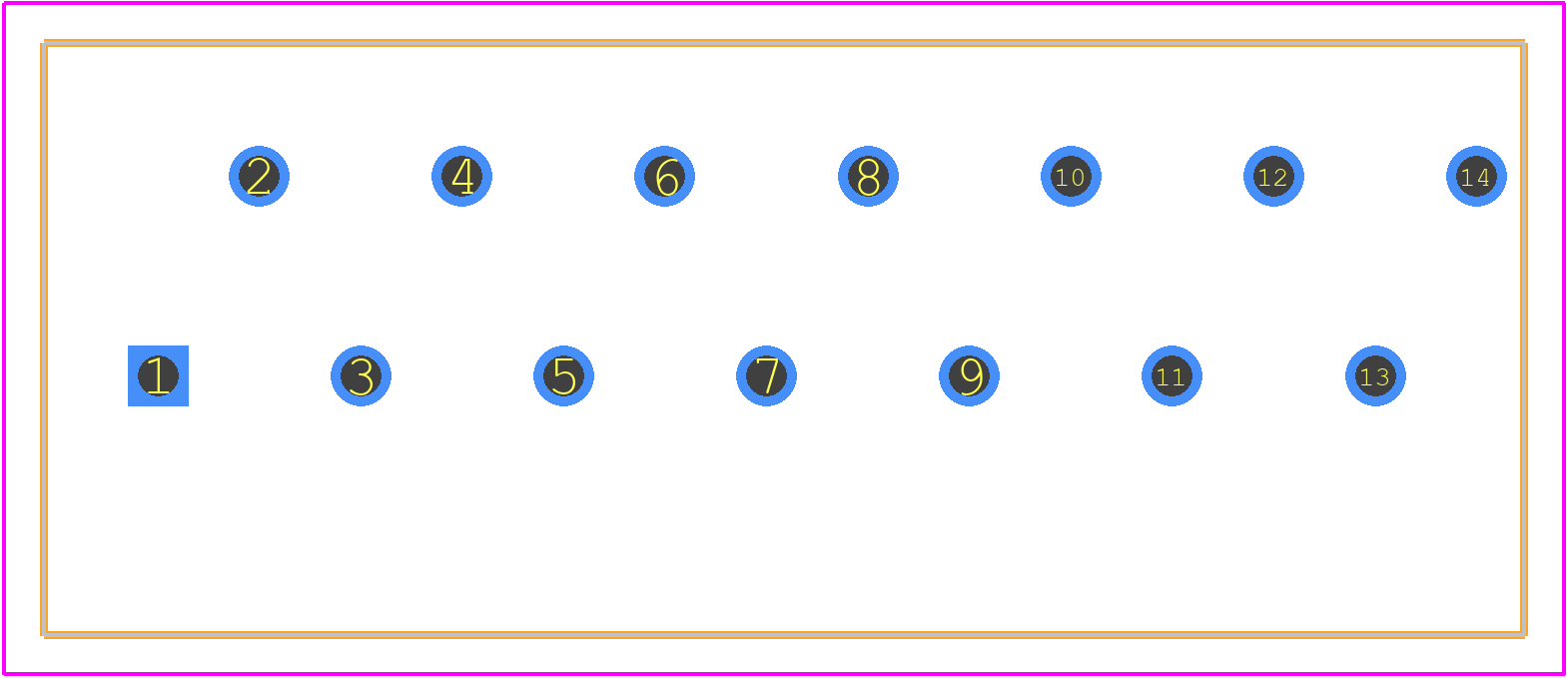

1986775-7 - TE Connectivity PCB footprint - Other - Other - 1986775-7-2
click to zoom
3D Models
1986775-7 - TE Connectivity - 3D model - Other - 1986775-7-2
click to zoom

1986775-7 Details

  • Manufacturer Part Number:

    1986775-7

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Mounting Type:

    BOARD

  • Number of Rows:

    2

  • Number of Ways:

    7

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    41 mm2

  • Wire Gauge:

    1 AWG
