1988176 - Phoenix Contact

Description: PT 2,5/ 9-7,5-H - Printed circuit board terminal, nominal current: 32 A, rated voltage (III/2): 800 V, nominal cross section: 2.5 mm<sup>2</sup>, number of potentials: 9, number of rows: 1, number of positions per row: 9, product range: PT 2,5/..-H, pitch: 7.5 mm, connection method: Screw connection with wire protector, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 4.1 mm, number of solder pins per potential: 1, type of packaging

Download 1988176 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1988176 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

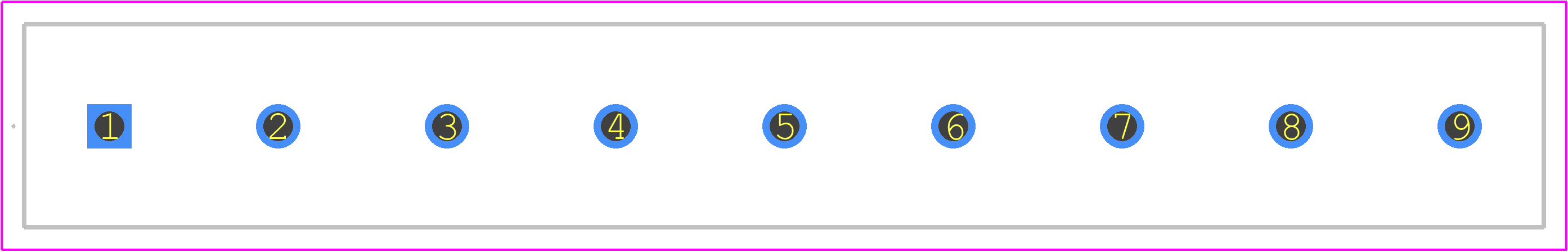

1988176 - Phoenix Contact PCB footprint - Other - Other - 1988176-1
click to zoom
3D Models
1988176 - Phoenix Contact - 3D model - Other - 1988176-1
click to zoom

1988176 Details

  • Manufacturer Part Number:

    1988176

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Bulgaria

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.44

  • Additional Feature:

    PA, UL 94V-0

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    9

  • Rated Current:

    32 A

  • Rated Voltage:

    500 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    4 mm2

  • Wire Gauge:

    10 AWG

1988176 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1988176 is -40°C to 125°C.
  • Yes, the 1988176 is suitable for outdoor use, as it has a IP67 rating, which means it is protected against dust and water ingress.
  • Yes, the 1988176 is designed to withstand high vibrations and is suitable for use in applications with vibration levels up to 10g.
  • The maximum current rating for the 1988176 is 10A per pin.
  • Yes, the 1988176 is designed to be compatible with other Phoenix Contact products, including their range of connectors and cables.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1988176 Overview

Use the download button to access the 1988176 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19881, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
