1988859 - Phoenix Contact

Description: PTA 1,5/ 7-5,0 - Printed circuit board terminal, nominal current: 17.5 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm<sup>2</sup>, number of potentials: 7, number of rows: 1, number of positions per row: 7, product range: PTA 1,5, pitch: 5 mm, connection method: Screw connection with wire protector, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: green, Pin layout: Linear front pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 1, type of packagi

Download 1988859 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1988859 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

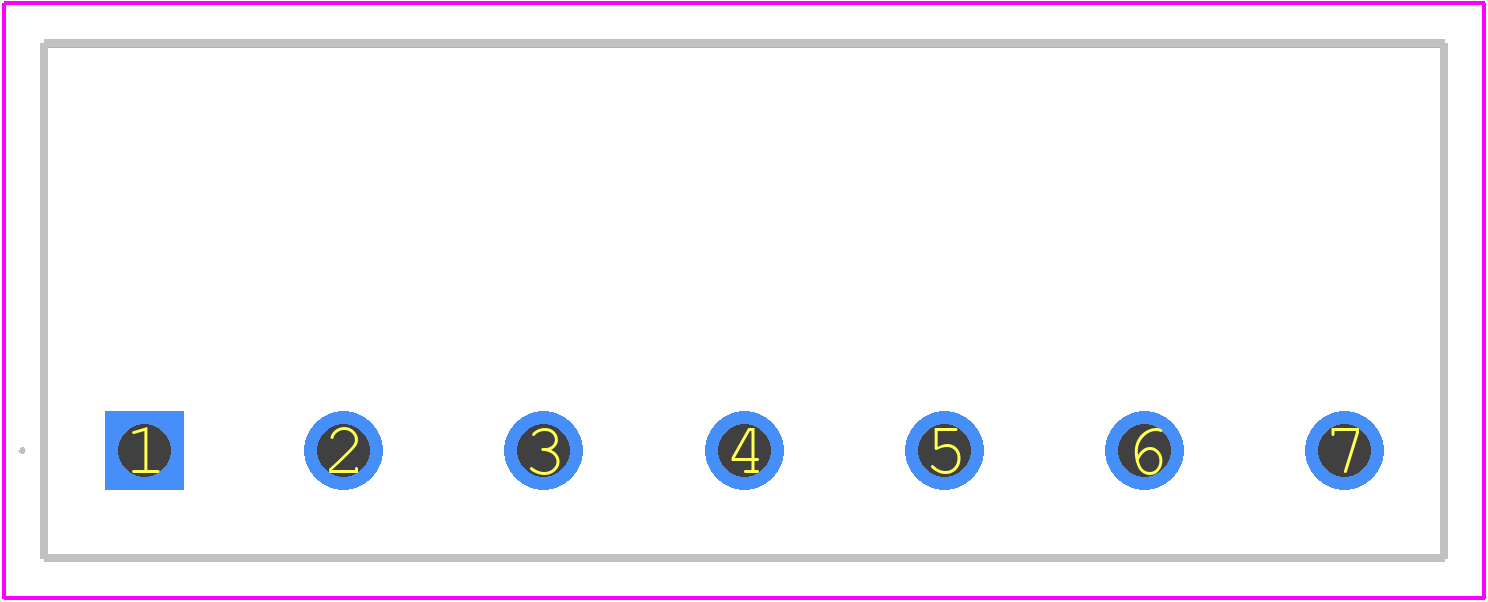

1988859 - Phoenix Contact PCB footprint - Other - Other - 1988859-3
click to zoom
3D Models
1988859 - Phoenix Contact - 3D model - Other - 1988859-3
click to zoom

1988859 Details

  • Manufacturer Part Number:

    1988859

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Greece

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    PA, UL 94V-0

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    7

  • Rated Current:

    17.5 A

  • Rated Voltage:

    250 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    14 AWG

1988859 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and layout to ensure proper mounting.
  • Yes, the 1988859 connector is designed to withstand vibrations up to 10g according to IEC 60068-2-6. However, it's crucial to ensure proper mounting and screwing to the PCB to maintain reliability.
  • The 1988859 connector is rated for operating temperatures between -40°C to 125°C and can withstand humidity up to 95%. However, it's essential to consider the specific environmental conditions and potential derating factors.
  • The maximum current rating for each contact is 12 A, but it's essential to consider the specific application, wire size, and insulation to ensure safe and reliable operation.
  • The 1988859 connector is suitable for both power and signal transmission applications, thanks to its low contact resistance and high-reliability design.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1988859 Overview

Use the download button to access the 1988859 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19888, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
