1989845 - Phoenix Contact

Description: PTSA 0,5/12-2,5-F - Printed circuit board terminal, nominal current: 2 A, rated voltage (III/2): 250 V, nominal cross section: 0.5 mm<sup>2</sup>, number of potentials: 12, number of rows: 1, number of positions per row: 12, product range: PTSA 0,5, pitch: 2.5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.6 mm, number of solder pins per potential: 1, type of packaging: packed i

Download 1989845 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1989845 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

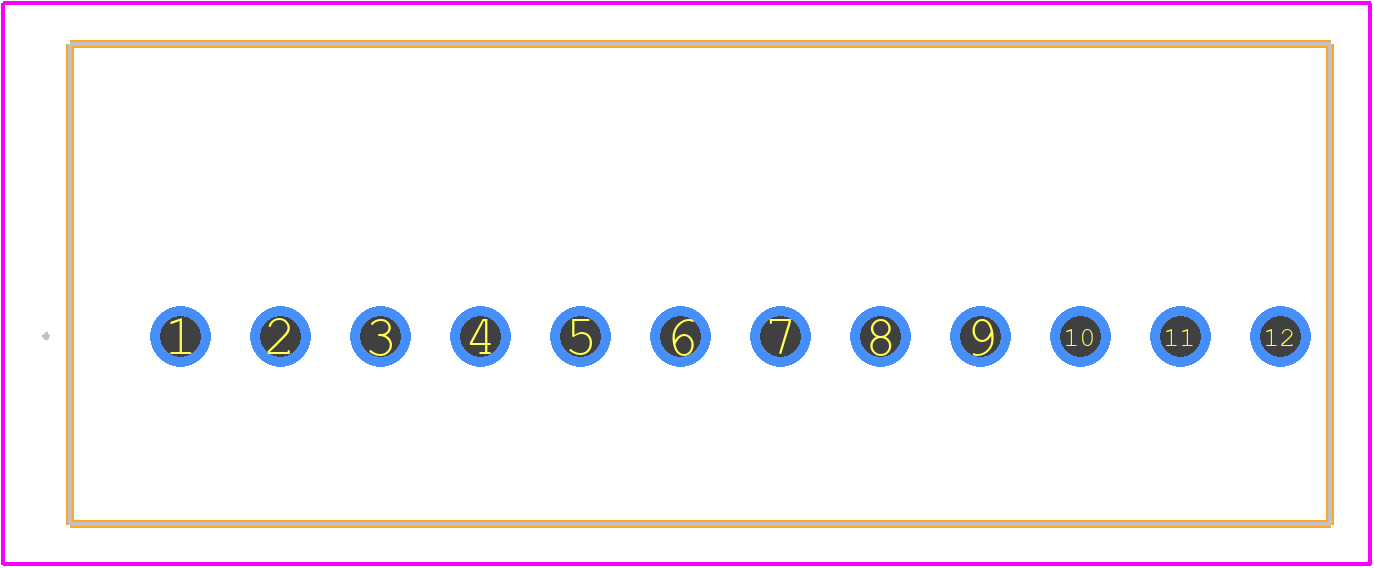

1989845 - Phoenix Contact PCB footprint - Other - Other - 1989845-2
click to zoom
3D Models
1989845 - Phoenix Contact - 3D model - Other - 1989845-2
click to zoom

1989845 Details

  • Manufacturer Part Number:

    1989845

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    8

  • Additional Feature:

    PA, UL 94V-0

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    12

  • Rated Current:

    2 A

  • Rated Voltage:

    63 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    0.5 mm2

  • Wire Gauge:

    20 AWG

1989845 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
  • Yes, the 1989845 is designed to withstand vibrations up to 10 g according to IEC 61373. However, it's recommended to perform additional testing to ensure the connector meets your specific application's requirements.
  • Yes, the 1989845 meets the UL 94 V-0 flammability rating, making it suitable for use in applications that require this rating.
  • The 1989845 can operate in temperatures ranging from -40°C to 125°C, making it suitable for use in a wide range of applications.
  • The 1989845 has a IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's recommended to take additional precautions to ensure the connector is properly sealed and protected in humid or wet environments.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1989845 Overview

Use the download button to access the 1989845 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19898, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact
