1989874 - Phoenix Contact

Description: PTSA 0,5/15-2,5-F - Printed circuit board terminal, nominal current: 2 A, rated voltage (III/2): 250 V, nominal cross section: 0.5 mm<sup>2</sup>, number of potentials: 15, number of rows: 1, number of positions per row: 15, product range: PTSA 0,5, pitch: 2.5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.6 mm, number of solder pins per potential: 1, type of packaging: packed i

Download 1989874 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1989874 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

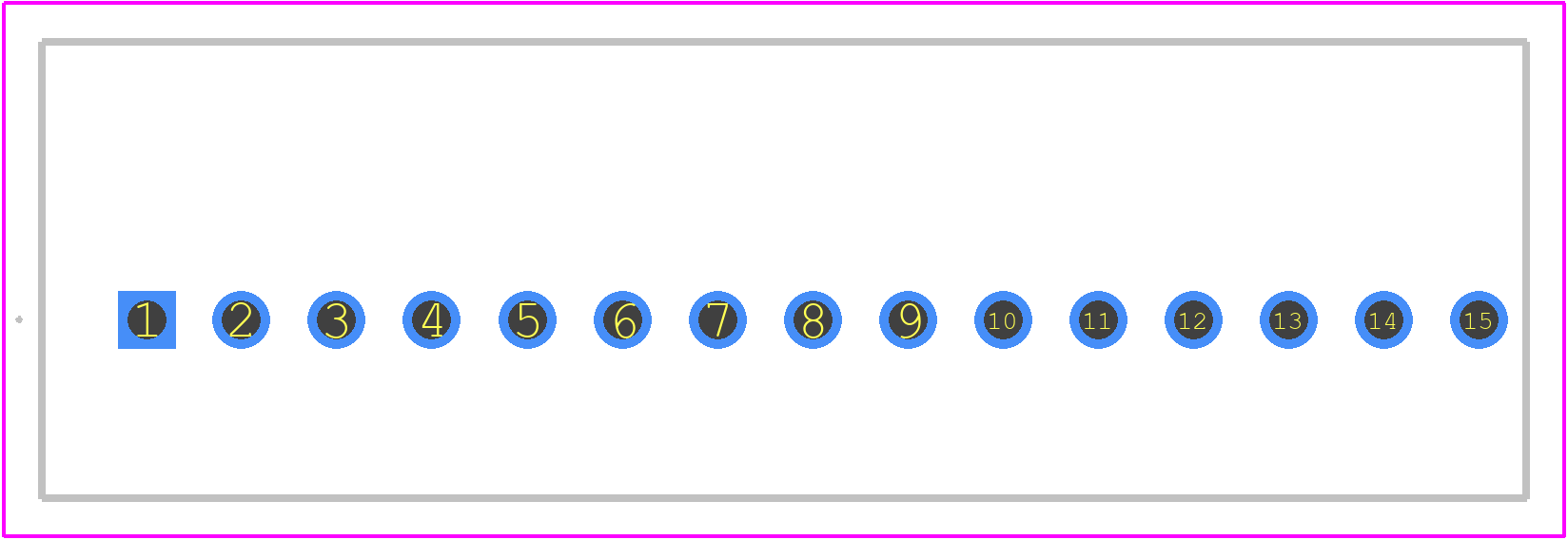

1989874 - Phoenix Contact PCB footprint - Other - Other - 1989874-3
click to zoom
3D Models
1989874 - Phoenix Contact - 3D model - Other - 1989874-3
click to zoom

1989874 Details

  • Manufacturer Part Number:

    1989874

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.5

  • Additional Feature:

    PA, UL 94V-0

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    15

  • Rated Current:

    2 A

  • Rated Voltage:

    63 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    0.5 mm2

  • Wire Gauge:

    20 AWG

1989874 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the Phoenix Contact's general technical guidelines.
  • Yes, the 1989874 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to consult with Phoenix Contact's technical support for specific application guidance.
  • The 1989874 connector has a protection rating of IP20, which means it's not suitable for outdoor use or exposure to moisture. For outdoor applications, consider using connectors with a higher IP rating, such as IP67 or IP69K.
  • While the datasheet specifies a wire size range of 0.5 mm² to 2.5 mm², it's possible to use smaller or larger wire sizes with the 1989874 connector. However, this may require additional processing steps or specialized tools. Consult with Phoenix Contact's technical support for guidance on using non-standard wire sizes.
  • Yes, the 1989874 connector is designed to be compatible with other Phoenix Contact products, such as their terminal blocks and PCB connectors. However, it's always recommended to verify compatibility before designing your system.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1989874 Overview

Use the download button to access the 1989874 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19898, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
