1990070 - Phoenix Contact

Description: PTSA 0,5/ 9-2,5-Z - Printed circuit board terminal, nominal current: 2 A, rated voltage (III/2): 250 V, nominal cross section: 0.5 mm<sup>2</sup>, number of potentials: 9, number of rows: 1, number of positions per row: 9, product range: PTSA 0,5, pitch: 2.5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: green, Pin layout: Zigzag pinning M, Solder pin [P]: 3.6 mm, number of solder pins per potential: 1, type of packaging: packed i

Download 1990070 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1990070 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

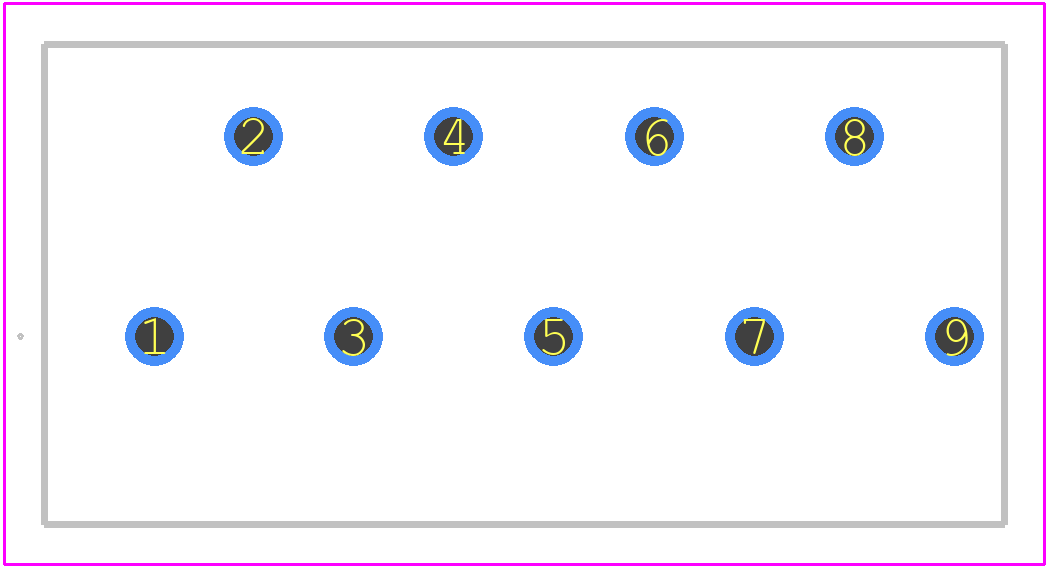

1990070 - Phoenix Contact PCB footprint - Other - Other - 1990070-1
click to zoom
3D Models
1990070 - Phoenix Contact - 3D model - Other - 1990070-1
click to zoom

1990070 Details

  • Manufacturer Part Number:

    1990070

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    8

  • Additional Feature:

    PA, UL 94V-0

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    9

  • Rated Current:

    2 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    0.5 mm2

  • Wire Gauge:

    20 AWG

1990070 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1990070 is -40°C to 125°C.
  • Yes, the 1990070 is suitable for outdoor use due to its IP67 rating, which provides protection against dust and water ingress.
  • The 1990070 is not certified for use in hazardous locations. If you need a product for hazardous locations, consider Phoenix Contact's ATEX- or IECEx-certified products.
  • The 1990070 can accommodate wire sizes up to 2.5 mm² (AWG 14).
  • Yes, the 1990070 is designed to be compatible with other Phoenix Contact products, including their connectors, cables, and terminals.
