1990999 - Phoenix Contact

Description: SPT 2,5/ 4-H-5,0 - Printed circuit board terminal, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm<sup>2</sup>, number of potentials: 4, number of rows: 1, number of positions per row: 4, product range: SPT 2,5/..-H, pitch: 5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 2.5 mm, number of solder pins per potential: 2, type of packaging: packed in

Download 1990999 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1990999 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

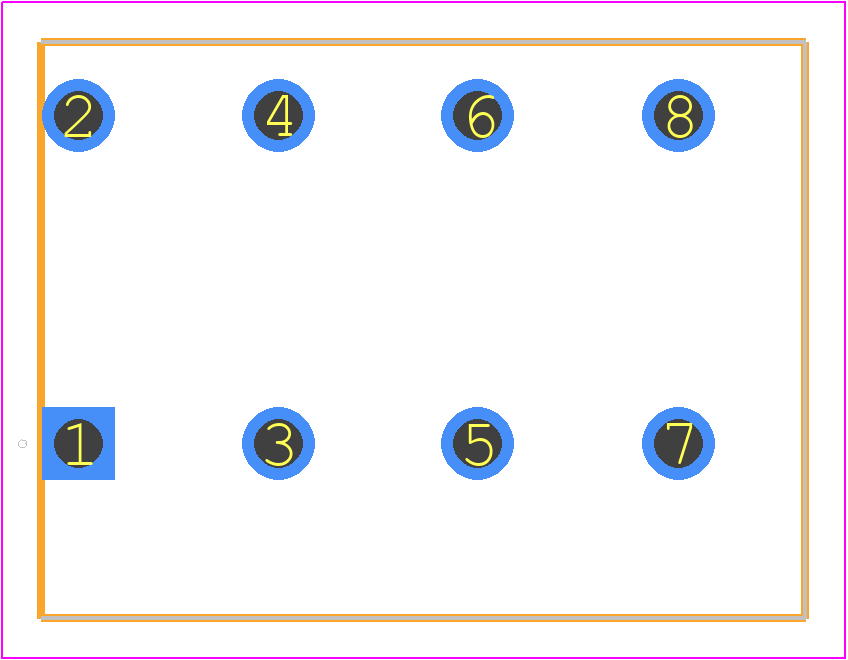

1990999 - Phoenix Contact PCB footprint - Other - Other - 1990999
click to zoom
3D Models
1990999 - Phoenix Contact - 3D model - Other - 1990999
click to zoom

1990999 Details

  • Manufacturer Part Number:

    1990999

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.87

  • Additional Feature:

    PA, UL 94V-0

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    24 A

  • Rated Voltage:

    250 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    4 mm2

  • Wire Gauge:

    12 AWG

1990999 Frequently Asked Questions (FAQs)

  • The recommended torque value for tightening the 1990999 connector is 0.6 Nm to 1.2 Nm, depending on the specific application and environmental conditions.
  • Yes, the 1990999 connector is suitable for outdoor use, as it has a IP67 rating, which means it is protected against dust and water ingress, making it suitable for harsh environmental conditions.
  • Yes, the 1990999 connector is designed to withstand high-vibration applications, with a vibration resistance of up to 10g, making it suitable for use in industrial and transportation applications.
  • The 1990999 connector has an operating temperature range of -40°C to 125°C, making it suitable for use in a wide range of applications, including industrial, automotive, and aerospace.
  • Yes, the 1990999 connector is designed to be compatible with other Phoenix Contact products, including their range of connectors, cables, and accessories, making it easy to integrate into existing systems.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1990999 Overview

Use the download button to access the 1990999 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19909, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
