1996362 - Phoenix Contact

Description: PC 6-16/ 7-G1FU-10,16 - PCB headers, nominal cross section: 16 mm<sup>2</sup>, color: green, nominal current: 76 A (41 A in combination with PC 6 plug), rated voltage (III/2): 1000 V, contact surface: Ag, contact connection type: Pin, number of potentials: 7, number of rows: 1, number of positions: 7, number of connections: 7, product range: PC 6-16/..-G1FU, pitch: 10.16 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 4 mm, number of solder pins per potential: 3, plug-in system: CO

Download 1996362 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

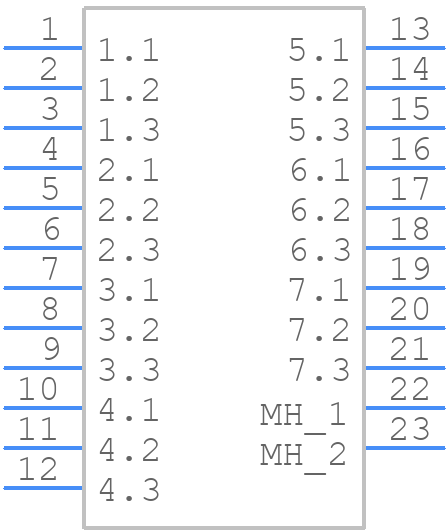

1996362 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

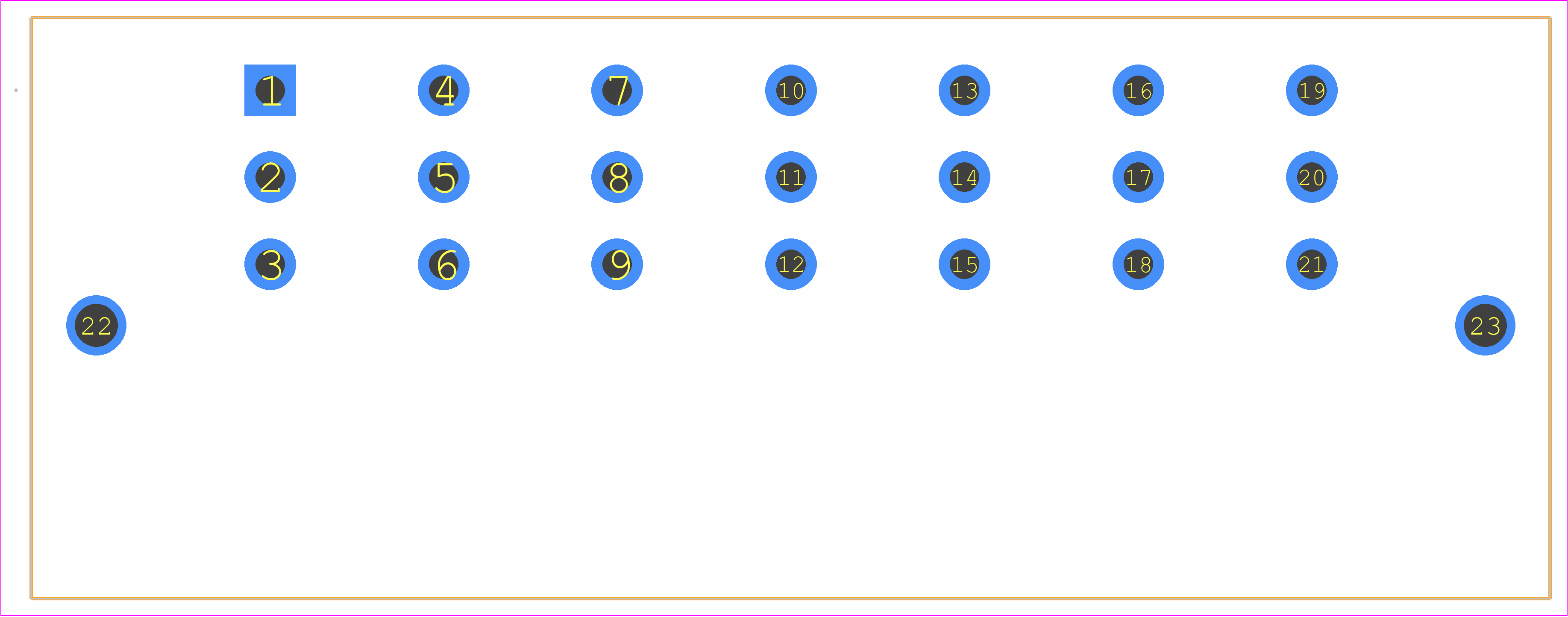

1996362 - Phoenix Contact PCB footprint - Other - Other - 1996362
click to zoom
3D Models
1996362 - Phoenix Contact - 3D model - Other - 1996362
click to zoom

1996362 Details

  • Manufacturer Part Number:

    1996362

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    7

  • Rated Current:

    76 A

  • Rated Voltage:

    630 V

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1996362 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, depending on the specific application and panel material.
  • Yes, the 1996362 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to perform additional testing and validation for specific applications.
  • The 1996362 connector has a IP67 rating, making it suitable for outdoor use and exposure to dust, water, and other environmental factors. However, it's essential to ensure proper sealing and installation to maintain the IP67 rating.
  • While the datasheet specifies a particular wire gauge and type, it's possible to use a different gauge or type with proper validation and testing. However, this may affect the connector's performance, reliability, and safety. Consult with Phoenix Contact or a qualified engineer for guidance.
  • To ensure proper mating and unmating, follow the recommended mating and unmating forces, and use the correct tools and procedures. It's also essential to ensure the connector is properly aligned and seated during mating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1996362 Overview

Use the download button to access the 1996362 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19963, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
