1999013 - Phoenix Contact

Description: PC 6-16/ 3-G1F-10,16 - PCB headers, nominal cross section: 16 mm<sup>2</sup>, color: green, nominal current: 76 A (41 A in combination with PC 6 plug), rated voltage (III/2): 1000 V, contact surface: Ag, contact connection type: Pin, number of potentials: 3, number of rows: 1, number of positions: 3, number of connections: 3, product range: PC 6-16/..-G1F, pitch: 10.16 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 4 mm, number of solder pins per potential: 3, plug-in system: COMB

Download 1999013 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

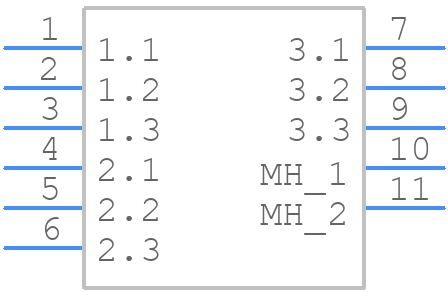

1999013 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

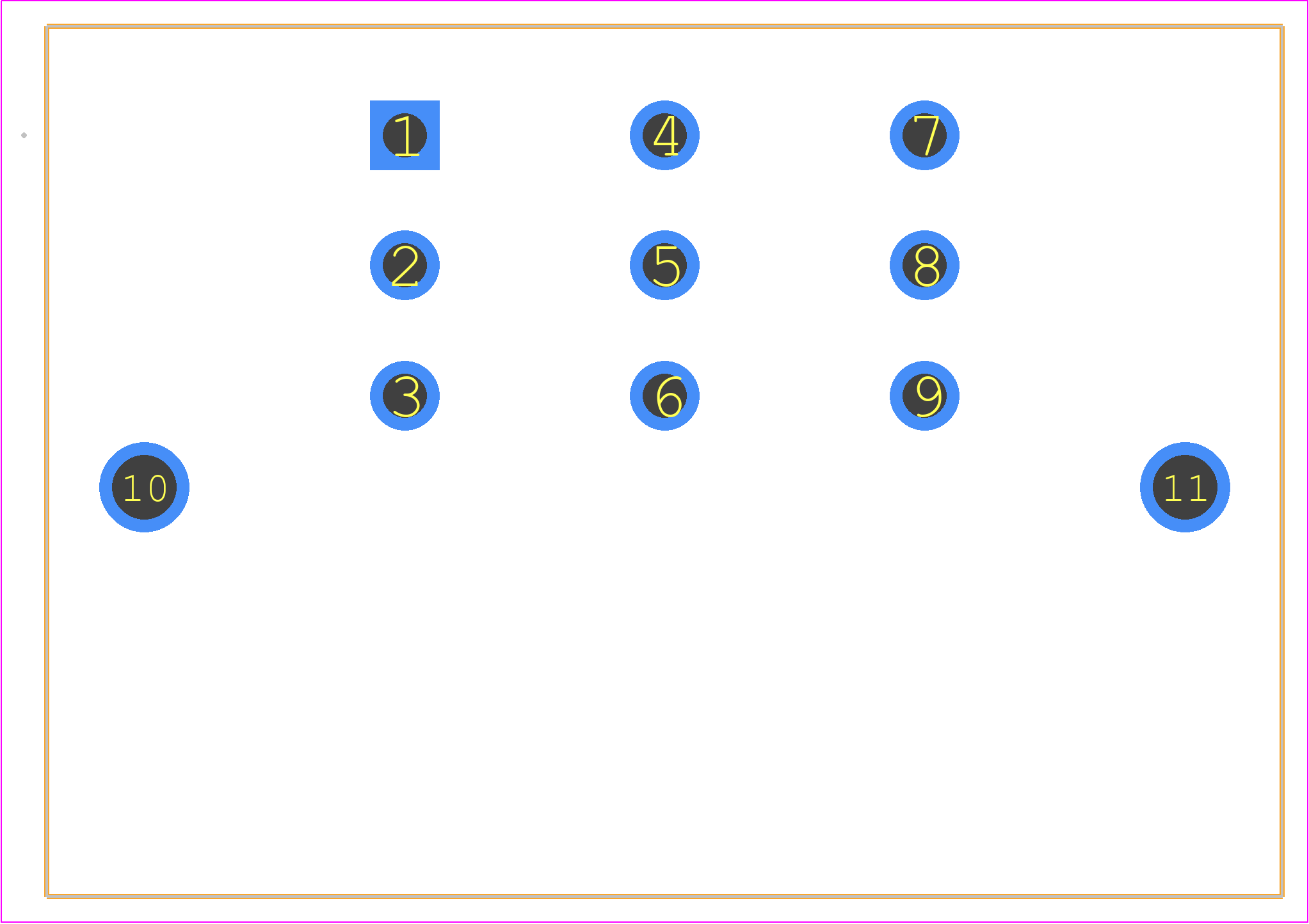

1999013 - Phoenix Contact PCB footprint - Other - Other - 1999013
click to zoom
3D Models
1999013 - Phoenix Contact - 3D model - Other - 1999013
click to zoom

1999013 Details

  • Manufacturer Part Number:

    1999013

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    3

  • Rated Current:

    76 A

  • Rated Voltage:

    1000 V

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1999013 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, depending on the specific application and environmental conditions.
  • Yes, the 1999013 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to consult with Phoenix Contact or a qualified engineer to ensure the connector meets the specific vibration requirements of your application.
  • The 1999013 connector has a IP67 rating, making it suitable for outdoor use and harsh environments. However, it's essential to ensure proper sealing and protection against moisture and contaminants to maintain the connector's integrity.
  • Yes, the 1999013 connector is designed to be compatible with other Phoenix Contact products, such as their terminal blocks and connectors. However, it's recommended to verify compatibility with third-party components before use.
  • The 1999013 connector has an operating temperature range of -40°C to 125°C, making it suitable for a wide range of applications.
