1AD1T2B4M7RE - Multicomp Pro

Description: Toggle Switch, On-On, DPDT, Non Illuminated, 1AD1, Through Hole, 100 mA

Download 1AD1T2B4M7RE Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 1AD1T2B4M7RE model

Email notifications will be applied after download.

Send part feedback

Symbol

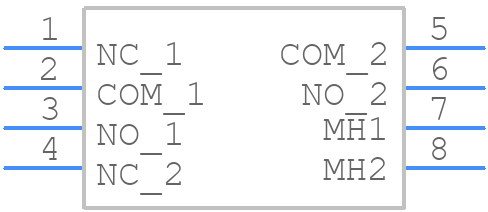

1AD1T2B4M7RE - Multicomp Pro - PCB symbol

PCB Footprints

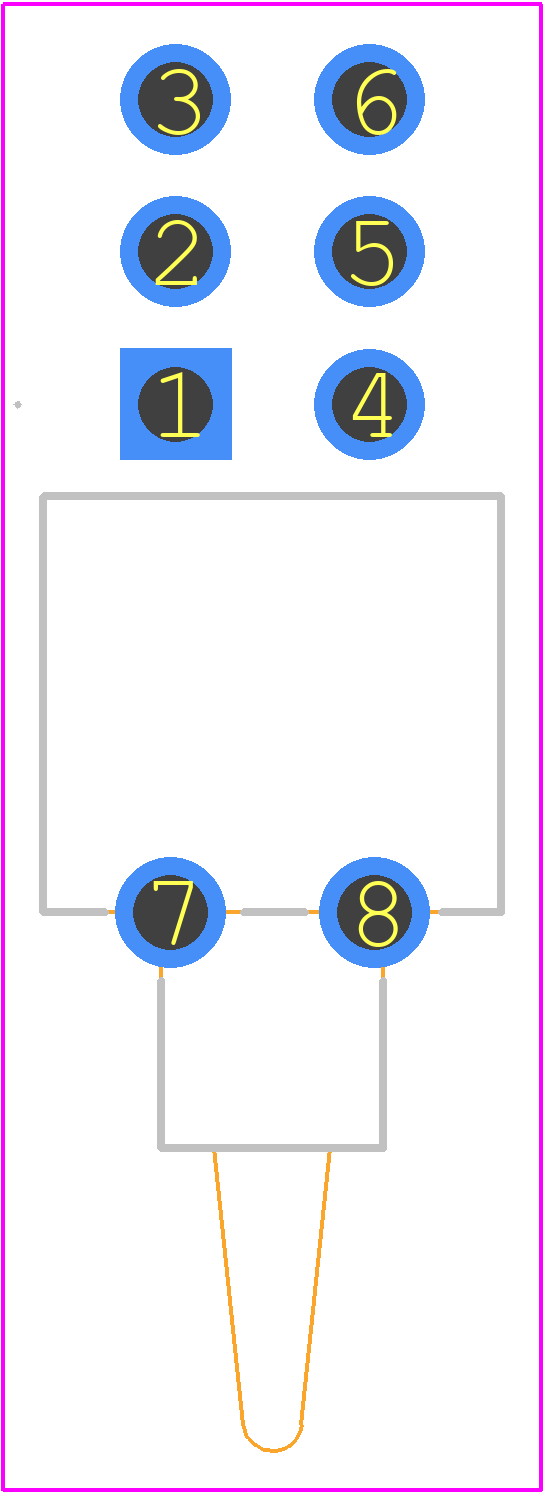

1AD1T2B4M7RE - Multicomp Pro PCB footprint - Other - Other - M7RE(DPDT)

Datasheet Download Datasheet
Stock & Prices Price & Stock for 1AD1T2B4M7RE
Part Number 1AD1T2B4M7RE
Manufacturer Multicomp Pro
Pin Count 8
Part Category Switch
Package Category Other
Footprint Name Other - M7RE(DPDT)
Released Date Apr 8, 2025
Last Modified Date Apr 10, 2025 11:10 AM UTC
Pinout / Pin List Click Here (Member Only)

1AD1T2B4M7RE Details

Manufacturer Part Number:
1AD1T2B4M7RE
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Manufacturer:
SPC Multicomp
YTEOL:
7
Switch Type:
TOGGLE SWITCH

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

1AD1T2B4M7RE Overview

Use the download button to access the 1AD1T2B4M7RE schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 1AD1T, or try a keyword search, such as Toggle Switches
