1EBN1001AE - Infineon

Description: Gate Drivers DRIVER_IC

Download 1EBN1001AE Model

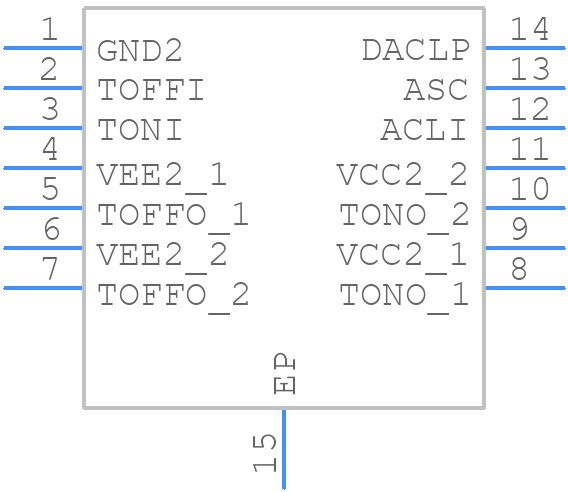

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
1EBN1001AE - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 1EBN1001AE
click to zoom
3D Models
1EBN1001AE - Infineon  - 3D model - Small Outline Packages - 1EBN1001AE
click to zoom

1EBN1001AE Details

  • Manufacturer Part Number:

    1EBN1001AE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOP-14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • High Side Driver:

    NO

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    15 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.7 mm

  • Supply Current-Max:

    3.1 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    13 V

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Max:

    -10 V

  • Supply Voltage1-Min:

    -5 V

  • Supply Voltage1-Nom:

    -8 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.07 µs

  • Turn-on Time:

    0.01 µs

  • Width:

    3.9 mm
