1EBN1001AEXUMA1 - Infineon

Description: Gate Drivers ISOLATED HVIC

Download 1EBN1001AEXUMA1 Model

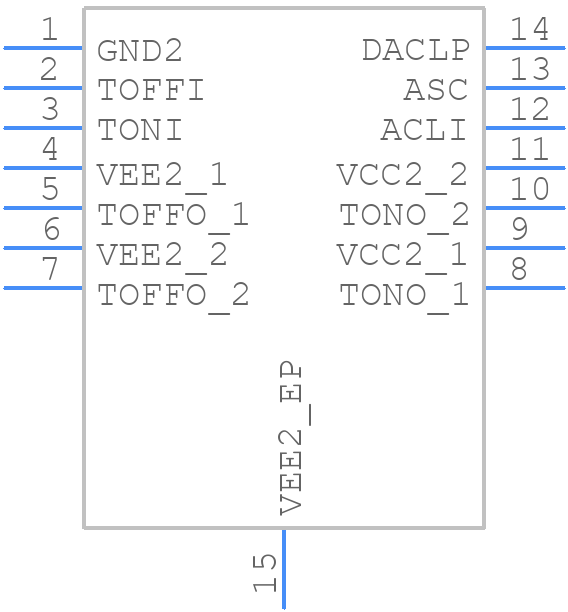

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
1EBN1001AEXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-14_2021
click to zoom
3D Models
1EBN1001AEXUMA1 - Infineon  - 3D model - Small Outline Packages - PG-DSO-14_2021
click to zoom

1EBN1001AEXUMA1 Details

  • Manufacturer Part Number:

    1EBN1001AEXUMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOP-14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3

  • High Side Driver:

    NO

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    15 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.7 mm

  • Supply Current-Max:

    3.1 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    13 V

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Max:

    -10 V

  • Supply Voltage1-Min:

    -5 V

  • Supply Voltage1-Nom:

    -8 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.07 µs

  • Turn-on Time:

    0.01 µs

  • Width:

    3.9 mm

1EBN1001AEXUMA1 Frequently Asked Questions (FAQs)

  • Infineon recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently.
  • Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout guidelines to minimize thermal resistance.
  • The maximum allowed voltage on the input pins is 5.5V, exceeding this may cause damage to the device.
  • Yes, the 1EBN1001AEXUMA1 is suitable for high-frequency switching applications up to 100 kHz, but ensure proper PCB layout and decoupling to minimize electromagnetic interference.
  • Follow standard ESD handling procedures, use ESD-protective packaging, and ensure that the device is properly grounded during assembly.
