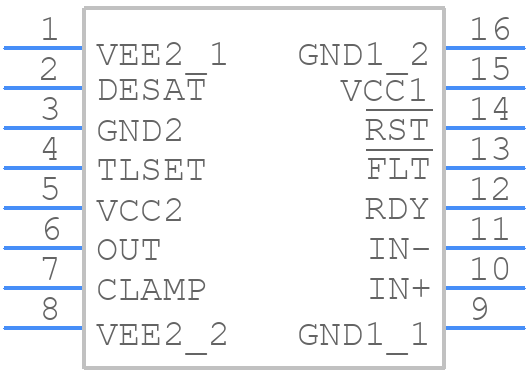

1ED020I12BTXUMA1 - Infineon

1ED020I12BTXUMA1 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  Infineon recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
• How do I ensure reliable operation across the entire temperature range?
  Ensure that the device is operated within the specified junction temperature range (TJ) of -40°C to 150°C. Also, follow the recommended thermal design and PCB layout guidelines to minimize thermal resistance.
• What are the ESD protection requirements for this device?
  The 1ED020I12BTXUMA1 has built-in ESD protection, but it's still recommended to follow standard ESD handling precautions during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is not exposed to static electricity during handling.
• Can I use this device in a high-reliability or automotive application?
  Yes, the 1ED020I12BTXUMA1 is AEC-Q101 qualified, making it suitable for automotive and high-reliability applications. However, ensure that you follow the recommended design and testing guidelines for these applications.
• How do I troubleshoot issues with the device, such as unexpected behavior or failure?
  Use a combination of visual inspection, electrical testing, and debugging techniques to identify the root cause of the issue. Consult the datasheet and application notes for troubleshooting guidelines and contact Infineon's technical support if needed.
