The recommended PCB footprint for the 1ED020I12FTXUMA1 is a 5x5mm QFN package with a 0.5mm pitch. The datasheet provides a recommended land pattern and solder mask design to ensure reliable assembly and thermal performance.
To ensure reliable operation of the 1ED020I12FTXUMA1 in high-temperature environments, it is recommended to follow the thermal design guidelines provided in the datasheet, including proper heat sinking, thermal interface material selection, and PCB design considerations.
The 1ED020I12FTXUMA1 has built-in ESD protection, but it is still recommended to follow proper ESD handling and storage procedures to prevent damage. The device can withstand ESD pulses up to 2kV according to the Human Body Model (HBM) and 500V according to the Charged Device Model (CDM).
Yes, the 1ED020I12FTXUMA1 is AEC-Q100 qualified, which means it meets the stringent requirements for automotive applications. However, it is recommended to consult with Infineon's automotive support team to ensure the device meets the specific requirements of the target application.
The 1ED020I12FTXUMA1 should be stored in a dry, cool place, away from direct sunlight and moisture. It is recommended to follow the Moisture Sensitivity Level (MSL) guidelines and to handle the device with anti-static precautions to prevent damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
1ED020I12FTXUMA1 Overview

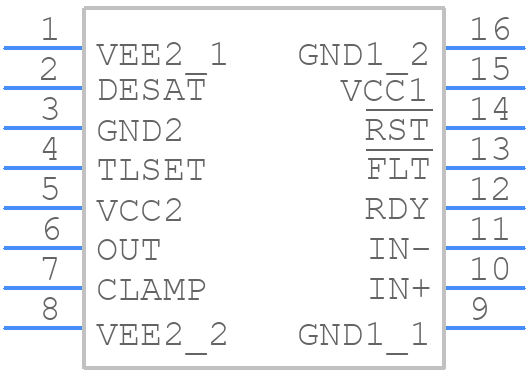

Use the download button to access the 1ED020I12FTXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1ED02,
or try a keyword search, such as MOSFET Drivers
