Infineon recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
Infineon recommends following the thermal design guidelines, using a heat sink if necessary, and ensuring good airflow around the device. Additionally, consider using a thermistor or thermocouple to monitor the device temperature.
The 1ED3431MU12MXUMA1 has built-in ESD protection, but it's still recommended to follow standard ESD handling precautions during assembly and handling. Use an ESD wrist strap or mat, and ensure the PCB is properly grounded.
Yes, the 1ED3431MU12MXUMA1 is qualified for automotive and high-reliability applications. However, additional testing and validation may be required to meet specific industry standards, such as AEC-Q100 or IATF 16949.
Infineon recommends following the JEDEC J-STD-020 standard for soldering conditions. The recommended peak temperature is 260°C, with a maximum time above 217°C of 60 seconds.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
1ED3431MU12MXUMA1 Overview

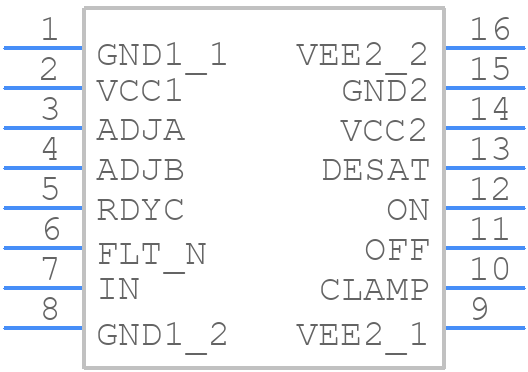

Use the download button to access the 1ED3431MU12MXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1ED34,
or try a keyword search, such as MOSFET Drivers
