Description:Gate Drivers ISOLATED DRIVER Single-channel 5.7 kV (rms) isolated gate driver IC with I2C configurability for DESAT, Soft-off, UVLO, Miller clamp and optional two-level turn-of
Infineon provides a dedicated application note (AN2014-03) that outlines the recommended PCB layout and thermal management guidelines for the 1ED3890MU12MXUMA1. It's essential to follow these guidelines to ensure optimal performance, reliability, and thermal dissipation.
When selecting a gate driver for the 1ED3890MU12MXUMA1, consider factors such as the driver's output current capability, voltage rating, and propagation delay. Infineon recommends using a gate driver like the 1EDI60N12AF or 1EDI60N12BF, which are specifically designed to work with the 1ED3890MU12MXUMA1. Consult the gate driver datasheet and application notes for more information.
Paralleling multiple 1ED3890MU12MXUMA1 devices can be done to increase the overall current handling capability. However, it's crucial to ensure proper synchronization and current sharing to avoid uneven current distribution and potential damage. Infineon recommends using a dedicated master-slave configuration and following the guidelines outlined in the application note (AN2019-07) for paralleling IGBT modules.
Implementing overcurrent protection and fault detection is critical for ensuring the reliability and safety of the system. Infineon recommends using a combination of hardware and software-based protection mechanisms, such as desaturation detection, overcurrent detection, and temperature monitoring. Consult the application note (AN2018-04) for more information on implementing fault detection and protection strategies for the 1ED3890MU12MXUMA1.
The 1ED3890MU12MXUMA1 is designed to meet the highest reliability and durability standards, with a typical lifetime of 15-20 years or more, depending on the application and operating conditions. Infineon's rigorous testing and qualification processes ensure that the device meets or exceeds industry standards for reliability and durability. Consult the datasheet and reliability report for more information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
1ED3890MU12MXUMA1 Overview

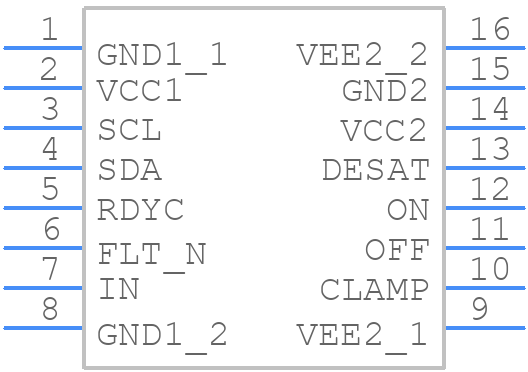

Use the download button to access the 1ED3890MU12MXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1ED38,
or try a keyword search, such as MOSFET Drivers
