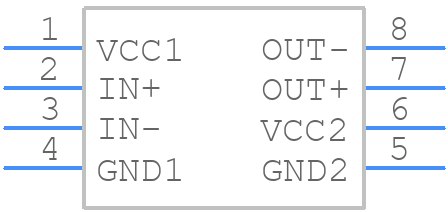

1EDC05I12AHXUMA1 - Infineon

1EDC05I12AHXUMA1 Details

• Manufacturer Part Number:

  1EDC05I12AHXUMA1

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  SOP-8

• Country Of Origin:

  Indonesia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  20 Weeks

• Manufacturer:

  Infineon Technologies AG

• YTEOL:

  0

• Built-in Protections:

  OVER CURRENT; UNDER VOLTAGE

• High Side Driver:

  NO

• Input Characteristics:

  DIFFERENTIAL

• Interface IC Type:

  BUFFER OR INVERTER BASED IGBT DRIVER

• JESD-30 Code:

  R-PDSO-G8

• JESD-609 Code:

  e4

• Length:

  7.5 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  STANDARD

• Output Current Flow Direction:

  SOURCE AND SINK

• Output Peak Current Limit-Nom:

  1.3 A

• Output Polarity:

  COMPLEMENTARY

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP8,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Seated Height-Max:

  2.65 mm

• Supply Voltage-Max:

  17 V

• Supply Voltage-Min:

  3.1 V

• Supply Voltage-Nom:

  5 V

• Supply Voltage1-Max:

  35 V

• Supply Voltage1-Min:

  13 V

• Supply Voltage1-Nom:

  15 V

• Surface Mount:

  YES

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Turn-off Time:

  0.33 µs

• Turn-on Time:

  0.33 µs

• Width:

  6.3 mm
