Infineon provides a recommended PCB layout in their application note AN2014-03, which includes guidelines for thermal vias, copper thickness, and component placement to ensure optimal thermal performance.
To ensure reliable operation in high-temperature environments, follow the recommended operating conditions, use a suitable thermal interface material, and consider using a heat sink or cooling system. Additionally, ensure that the device is properly soldered and that the PCB is designed to withstand the expected temperatures.
Exceeding the maximum junction temperature (Tj) rating can lead to reduced device lifespan, increased thermal resistance, and potentially even device failure. It's essential to ensure that the device operates within the recommended temperature range to maintain reliability and performance.
To prevent electrostatic discharge (ESD) damage, follow proper handling and assembly procedures, such as using ESD-safe materials, grounding personnel, and using ESD protection devices like wrist straps or mats. Ensure that the device is properly packaged and stored in ESD-safe containers.
Store the device in a dry, cool place, away from direct sunlight and moisture. Avoid exposing the device to extreme temperatures, humidity, or physical stress. Follow the recommended storage and handling conditions outlined in the datasheet and Infineon's packaging and labeling guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
1EDI05I12AHXUMA1 Overview

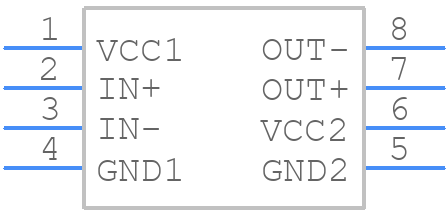

Use the download button to access the 1EDI05I12AHXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1EDI0,
or try a keyword search, such as MOSFET Drivers
