1EDI2002ASXUMA2 - Infineon

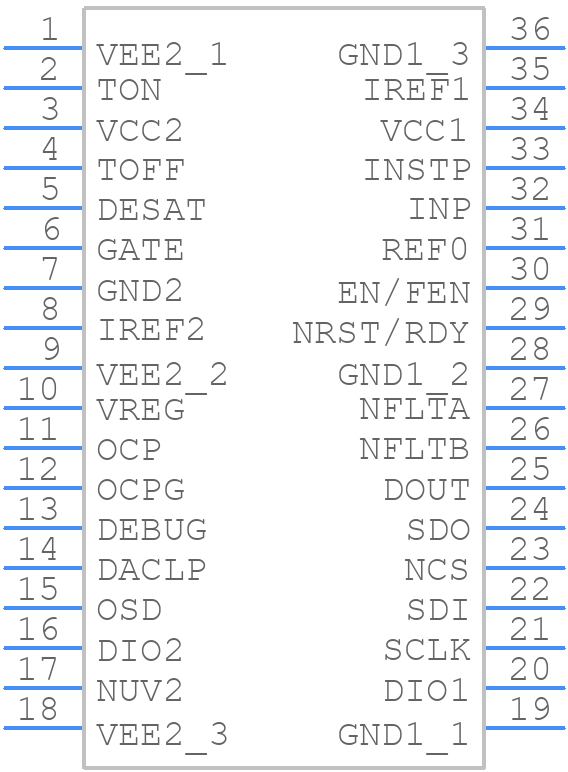

1EDI2002ASXUMA2 Details

• Manufacturer Part Number:

  1EDI2002ASXUMA2

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

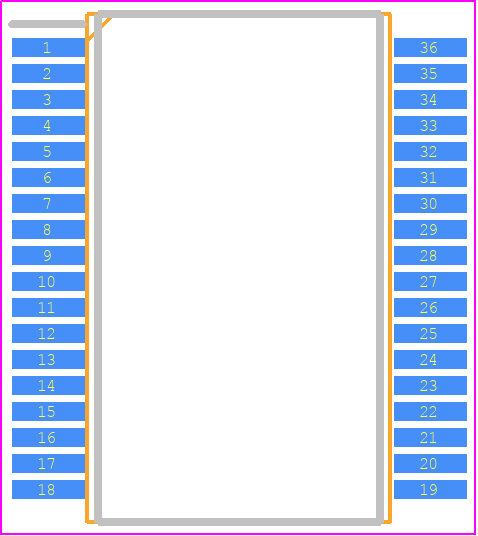

• Package Description:

  SOP-36

• Country Of Origin:

  Austria, Germany, Indonesia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  26 Weeks

• Manufacturer:

  Infineon Technologies AG

• YTEOL:

  3

• High Side Driver:

  YES

• Input Characteristics:

  SCHMITT TRIGGER

• Interface IC Type:

  BUFFER OR INVERTER BASED IGBT DRIVER

• JESD-30 Code:

  R-PDSO-G36

• JESD-609 Code:

  e4

• Length:

  12.8 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  36

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  OPEN-DRAIN

• Output Peak Current Limit-Nom:

  1 A

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SSOP36,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  2.65 mm

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.65 V

• Supply Voltage-Nom:

  5 V

• Supply Voltage1-Max:

  18 V

• Supply Voltage1-Min:

  13 V

• Supply Voltage1-Nom:

  15 V

• Surface Mount:

  YES

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Turn-off Time:

  0.255 µs

• Turn-on Time:

  0.255 µs

• Width:

  7.6 mm
