1EDI2010ASXUMA1 - Infineon

Description: Gate Drivers ISOLATED HVIC

Download 1EDI2010ASXUMA1 Model

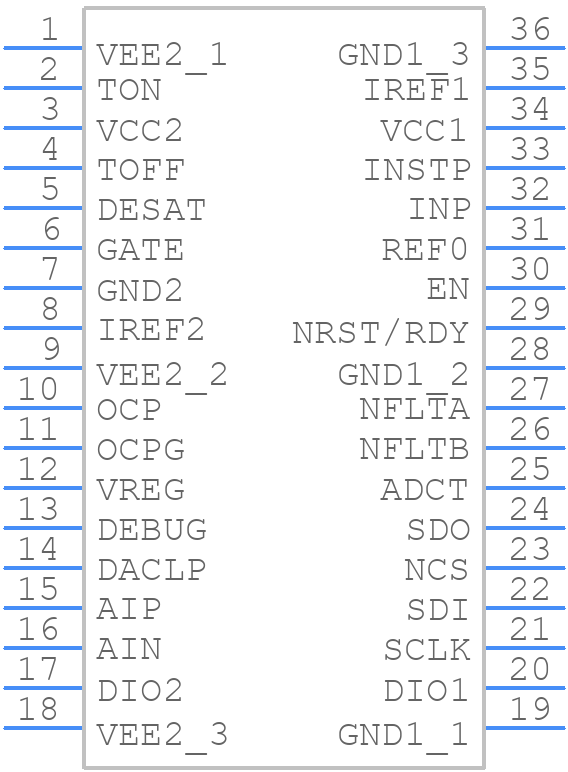

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

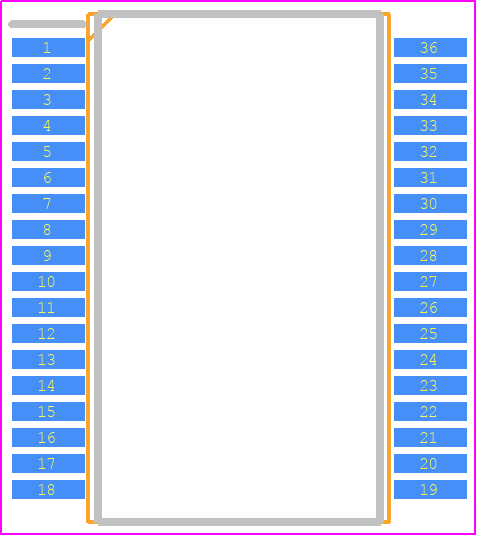

1EDI2010ASXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - DSO-36
click to zoom
3D Models
1EDI2010ASXUMA1 - Infineon  - 3D model - Small Outline Packages - DSO-36
click to zoom

1EDI2010ASXUMA1 Details

  • Manufacturer Part Number:

    1EDI2010ASXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SSOP-36

  • Country Of Origin:

    Austria, Germany, Indonesia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3

  • Built-in Protections:

    OVER CURRENT; THERMAL

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT DRIVER

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e4

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP36,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.65 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    18 V

  • Supply Voltage1-Min:

    13 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.255 µs

  • Turn-on Time:

    0.255 µs

  • Width:

    7.6 mm

1EDI2010ASXUMA1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
  • To ensure EMC, use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead to filter out electromagnetic interference (EMI).
  • The maximum allowed voltage on the input pins is 5.5V, exceeding which may cause permanent damage to the device.
  • Store the device in a dry, cool place, away from direct sunlight and moisture. Use anti-static packaging and handling procedures to prevent electrostatic discharge (ESD) damage.
  • A soldering profile with a peak temperature of 260°C and a dwell time of 30-60 seconds is recommended. Avoid exceeding 280°C to prevent damage to the device.
