A 2-layer or 4-layer PCB with a thermal via array underneath the device is recommended. The thermal vias should be connected to a solid copper plane on the bottom layer to dissipate heat efficiently.
Ensure proper heat sinking, use a thermally conductive material for the PCB, and consider using a heat sink or thermal interface material. Also, follow the recommended operating temperature range and derate the device's power handling accordingly.
The 1EDI20H12AHXUMA1 has built-in ESD protection, but it's still recommended to follow standard ESD handling precautions during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment.
Yes, the 1EDI20H12AHXUMA1 is AEC-Q101 qualified, making it suitable for automotive and high-reliability applications. However, ensure that you follow the recommended operating conditions, and consult with Infineon's application notes and technical support for specific guidance.
Check the input voltage, output voltage, and current consumption. Verify that the device is properly decoupled and that the input voltage is within the recommended range. Consult the datasheet and application notes for troubleshooting guidelines and potential causes of issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
1EDI20H12AHXUMA1 Overview

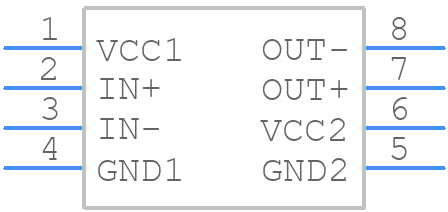

Use the download button to access the 1EDI20H12AHXUMA1 schematic symbol, PCB footprint, and 3D model.
