1EDI30I12MFXUMA1 - Infineon

Description: Infineon 1EDI30I12MFXUMA1 Dual Galvanic Isolated MOSFET Power Driver, -6.2 A, 5.9 A, 3.1 → 17 V 8-Pin, DSO

Download 1EDI30I12MFXUMA1 Model

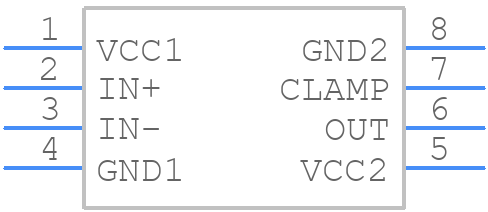

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
1EDI30I12MFXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 1EDI30I12MFXUMA1
click to zoom
3D Models
1EDI30I12MFXUMA1 - Infineon  - 3D model - Small Outline Packages - 1EDI30I12MFXUMA1
click to zoom

1EDI30I12MFXUMA1 Details

  • Manufacturer Part Number:

    1EDI30I12MFXUMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Germany, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Built-in Protections:

    UNDER VOLTAGE

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Peak Current Limit-Nom:

    6.2 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    17 V

  • Supply Voltage-Min:

    3.1 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    18 V

  • Supply Voltage1-Min:

    13 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.33 µs

  • Turn-on Time:

    0.33 µs

  • Width:

    3.9 mm

1EDI30I12MFXUMA1 Frequently Asked Questions (FAQs)

  • Infineon recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • Ensure proper thermal management, use a heat sink if necessary, and follow the recommended operating conditions. Also, consider using a thermistor or thermocouple to monitor the device temperature.
  • Infineon recommends a gate drive voltage of 12-15V for optimal switching performance. However, the exact voltage may vary depending on the specific application and requirements.
  • Use a TVS diode or a voltage clamp to protect the device from overvoltage. Implement overcurrent protection using a fuse or a current sense resistor with a monitoring circuit.
  • The recommended dead time for the 1EDI30I12MFXUMA1 is typically in the range of 100-200ns, depending on the specific application and switching frequency.
