1EDI60H12AHXUMA1 - Infineon

Description: Infineon 1EDI60H12AHXUMA1 Dual Galvanic Isolated Isolated Gate Driver, -9.4 A, 10 A, 3.1 → 17 V 8-Pin, DSO

Download 1EDI60H12AHXUMA1 Model

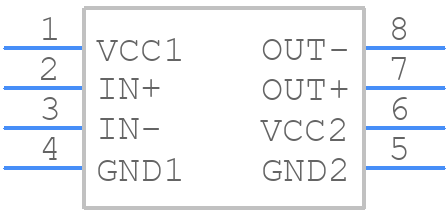

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
1EDI60H12AHXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 1EDI60H12AHXUMA1-1
click to zoom
3D Models
1EDI60H12AHXUMA1 - Infineon  - 3D model - Small Outline Packages - 1EDI60H12AHXUMA1-1
click to zoom

1EDI60H12AHXUMA1 Details

  • Manufacturer Part Number:

    1EDI60H12AHXUMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOP-8

  • Country Of Origin:

    Germany, Indonesia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3

  • Built-in Protections:

    OVER CURRENT; UNDER VOLTAGE

  • High Side Driver:

    NO

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    7.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Peak Current Limit-Nom:

    10 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    17 V

  • Supply Voltage-Min:

    3.1 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    35 V

  • Supply Voltage1-Min:

    13 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.33 µs

  • Turn-on Time:

    0.33 µs

  • Width:

    6.3 mm

1EDI60H12AHXUMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the 1EDI60H12AHXUMA1 is -40°C to 150°C.
  • Proper cooling can be achieved by using a heat sink with a thermal resistance of ≤ 10 K/W, and ensuring good airflow around the device.
  • A recommended PCB layout for the 1EDI60H12AHXUMA1 includes a solid ground plane, short and wide traces for power and signal lines, and a heat sink attached to the device.
  • To protect the device from ESD, handle the device by the body or use an ESD wrist strap, and ensure the PCB is designed with ESD protection in mind.
  • The recommended storage condition for the 1EDI60H12AHXUMA1 is in a dry, cool place with a temperature range of 5°C to 30°C and humidity ≤ 60%.
