1EDI60N12AFXUMA1 - Infineon

Description: Infineon Dual Isolated Gate Driver, 10 (High Level) A, 9.4 (Low Level) A, 3.1 → 17 V, 8-Pin DSO

Download 1EDI60N12AFXUMA1 Model
Schematic

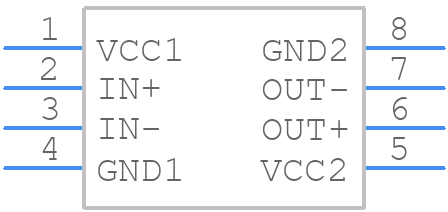

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
1EDI60N12AFXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-8-51
click to zoom
3D Models
1EDI60N12AFXUMA1 - Infineon  - 3D model - Small Outline Packages - PG-DSO-8-51
click to zoom

1EDI60N12AFXUMA1 Details

  • Manufacturer Part Number:

    1EDI60N12AFXUMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Germany, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • High Side Driver:

    NO

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    10 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    17 V

  • Supply Voltage-Min:

    3.1 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    35 V

  • Supply Voltage1-Min:

    10 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.15 µs

  • Turn-on Time:

    0.142 µs

  • Width:

    3.9 mm

1EDI60N12AFXUMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the 1EDI60N12AFXUMA1 is -40°C to 150°C.
  • Proper thermal management can be achieved by ensuring good heat sink contact, using thermal interface materials, and maintaining a clean and dust-free environment.
  • The recommended gate resistor value for the 1EDI60N12AFXUMA1 is typically in the range of 10 ohms to 20 ohms, but may vary depending on the specific application and switching frequency.
  • Yes, the 1EDI60N12AFXUMA1 can be used in a parallel configuration, but it's essential to ensure that the modules are matched and that the gate drive and thermal management are properly designed.
