1EDN7511BXUSA1 - Infineon

Description: INFINEON - 1EDN7511BXUSA1 - MOSFET DRIVER, -40 TO 150DEG C

Download 1EDN7511BXUSA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

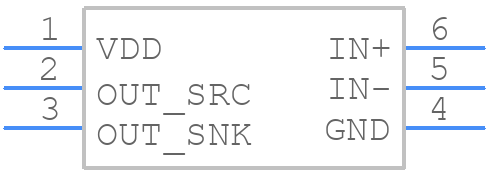

1EDN7511BXUSA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
1EDN7511BXUSA1 - Infineon PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - 1EDN7511BXUSA1
click to zoom

1EDN7511BXUSA1 Details

  • Manufacturer Part Number:

    1EDN7511BXUSA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOT-23, 6 PIN

  • Country Of Origin:

    Germany, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • High Side Driver:

    NO

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    8 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSOP

  • Package Equivalence Code:

    TSOP6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE

  • Seated Height-Max:

    1.45 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.025 µs

  • Turn-on Time:

    0.025 µs

  • Width:

    1.6 mm

1EDN7511BXUSA1 Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in their application note AN2014-01, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
  • Infineon recommends using a gate driver with a high current capability and a short propagation delay, such as the 1EDF5673B or 1EDF5675B. The gate driver should also be compatible with the device's voltage and current ratings.
  • The maximum allowed junction temperature for the 1EDN7511BXUSA1 is 150°C, as specified in the datasheet. Exceeding this temperature can reduce the device's lifespan and affect its performance.
  • To ensure EMC, follow Infineon's guidelines for PCB layout, component selection, and shielding. Additionally, use a common-mode choke and a Y-capacitor to filter out electromagnetic interference (EMI).
  • For high-power applications, Infineon recommends using a heat sink with a thermal interface material (TIM) and a fan for forced air cooling. The heat sink should be designed to minimize thermal resistance and ensure good thermal contact with the device.
