1EDU20I12SVXUMA1 - Infineon

Description: Gate Drivers DRIVER IC

Download 1EDU20I12SVXUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

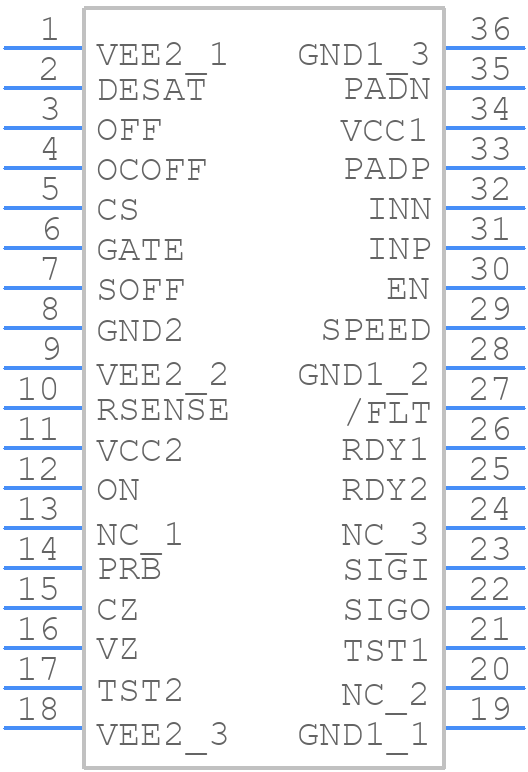

1EDU20I12SVXUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints

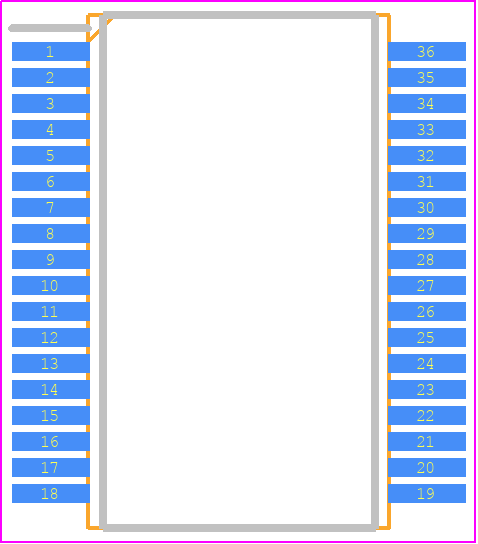

1EDU20I12SVXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - DSO-36-1
click to zoom
3D Models
1EDU20I12SVXUMA1 - Infineon - 3D model - Small Outline Packages - DSO-36-1
click to zoom

1EDU20I12SVXUMA1 Details

  • Manufacturer Part Number:

    1EDU20I12SVXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP-36

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Built-in Protections:

    OVER CURRENT; UNDER VOLTAGE

  • High Side Driver:

    NO

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT DRIVER

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SOURCE

  • Output Peak Current Limit-Nom:

    2 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP36,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.85 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    20 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.535 µs

  • Turn-on Time:

    0.54 µs

  • Width:

    7.5 mm

1EDU20I12SVXUMA1 Frequently Asked Questions (FAQs)

  • Infineon provides a reference design guide for the 1EDU20I12SVXUMA1, which includes recommendations for PCB layout, thermal management, and component placement to ensure optimal performance and thermal dissipation.
  • Infineon recommends following the guidelines outlined in the IEC 61800-3 standard for EMC compliance. Additionally, the device's datasheet provides information on electromagnetic emissions and susceptibility, which can be used to design an EMC-compliant system.
  • Infineon provides reliability data and lifetime expectations for the 1EDU20I12SVXUMA1 in the device's datasheet and reliability report. The report includes information on failure rates, mean time to failure (MTTF), and other reliability metrics.
  • The 1EDU20I12SVXUMA1 is rated for operation up to 150°C, but the device's performance and reliability may degrade at higher temperatures. Infineon recommends consulting the datasheet and application notes for guidance on using the device in high-temperature environments.
  • Infineon provides a range of tools and resources, including application notes, user manuals, and technical support, to help troubleshoot and debug issues with the 1EDU20I12SVXUMA1. Additionally, the device's datasheet includes information on fault detection and error handling.
