1MD1T2B4M7RE - Multicomp Pro

Description: MULTICOMP - 1MD1T2B4M7RE - SWITCH, PCB, DPDT, HORIZ

Download 1MD1T2B4M7RE Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 1MD1T2B4M7RE model

Email notifications will be applied after download.

Send part feedback

Symbol

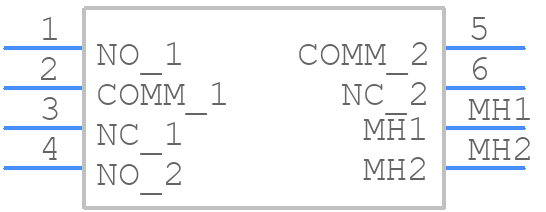

1MD1T2B4M7RE - Multicomp Pro - PCB symbol

PCB Footprints

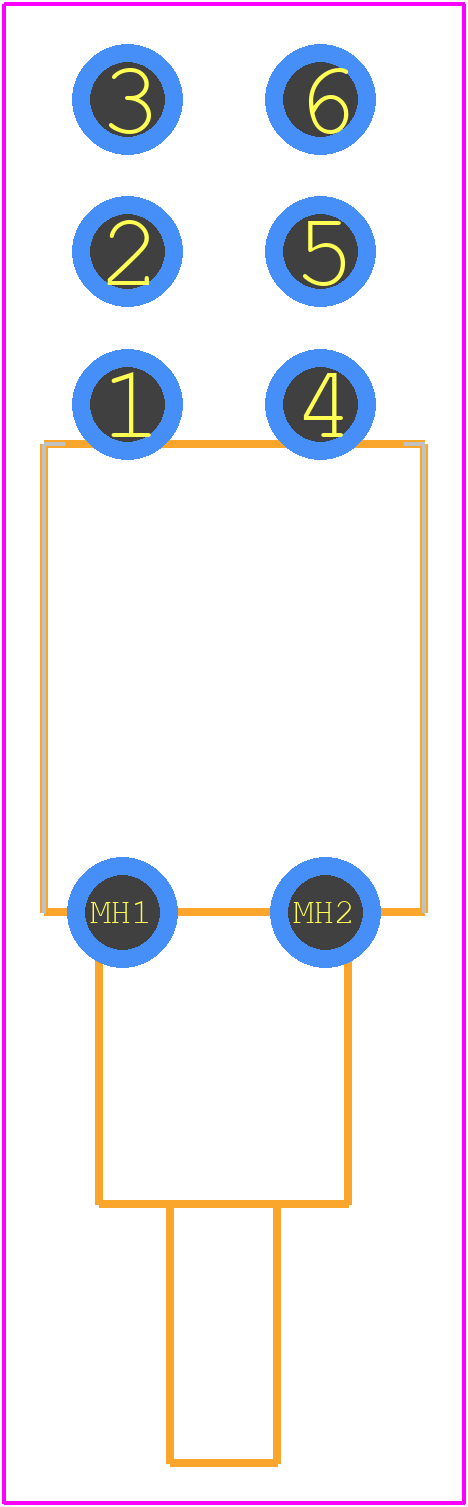

1MD1T2B4M7RE - Multicomp Pro PCB footprint - Other - Other - 1MD1T2B4M7RE-2

3D Models

1MD1T2B4M7RE - Multicomp Pro - 3D model - Other - 1MD1T2B4M7RE-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for 1MD1T2B4M7RE
Part Number 1MD1T2B4M7RE
Manufacturer Multicomp Pro
Pin Count 8
Part Category Switch
Package Category Other
Footprint Name Other - 1MD1T2B4M7RE-2
Released Date Mar 18, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

1MD1T2B4M7RE Details

Manufacturer Part Number:
1MD1T2B4M7RE
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.50.90.65
Manufacturer:
SPC Multicomp
YTEOL:
8
Switch Type:
TOGGLE SWITCH

Trust Checks

Expert Contribution

System Verified

Community Approved

1MD1T2B4M7RE Overview

Use the download button to access the 1MD1T2B4M7RE schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 1MD1T, or try a keyword search, such as Toggle Switches
