1MS1T2B4M6QES - Dailywell

Description: Toggle Switch SPDT 125 VAC SPDT Right Angle 40,000 Cycles Through Hole,Right Angle,12.7x6.9mm Toggle Switches RoHS, 10mȟmax. initial @ 2-4VDC , -40°C to 85°C

Download 1MS1T2B4M6QES Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1MS1T2B4M6QES - Dailywell - PCB symbol
click to zoom
PCB Footprints

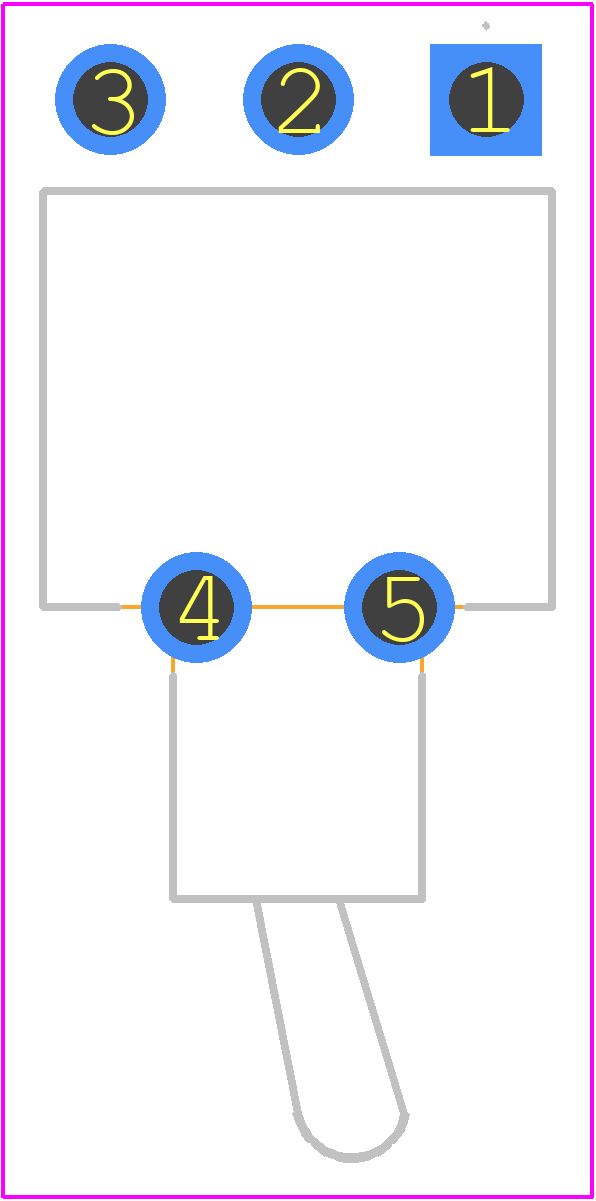

1MS1T2B4M6QES - Dailywell PCB footprint - Other - Other - 1MS1T2B4M6QES-2
click to zoom
3D Models
1MS1T2B4M6QES - Dailywell - 3D model - Other - 1MS1T2B4M6QES-2
click to zoom

1MS1T2B4M6QES Details

  • Manufacturer Part Number:

    1MS1T2B4M6QES

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Manufacturer:

    Dailywell Electronics Co Ltd

  • Body Height:

    6.86 mm

  • Body Length or Diameter:

    12.7 mm

  • Contact (AC) Max Rating R Load:

    5A@120VAC

  • Contact Current(AC)-Max:

    5 A

  • Contact Current(DC)-Max:

    5 A

  • Contact (DC) Max Rating R Load:

    5A@28VDC

  • Contact Voltage(AC)-Max:

    120 V

  • Contact Voltage(DC)-Max:

    28 V

  • JESD-609 Code:

    e4

  • Mounting Feature:

    THROUGH HOLE-RIGHT ANGLE

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Sealing:

    EPOXY TERMINAL SEALED

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    SPDT

  • Switch Type:

    TOGGLE SWITCH

  • Terminal Finish:

    Silver (Ag)

  • Termination Type:

    SOLDER

1MS1T2B4M6QES Frequently Asked Questions (FAQs)

  • The MTBF of the 1MS1T2B4M6QES is typically around 500,000 hours, depending on the operating conditions and environmental factors.
  • The 1MS1T2B4M6QES can operate in temperatures up to 85°C, but it's recommended to derate the output power to ensure reliable operation. Consult the datasheet for more information on temperature derating.
  • The 1MS1T2B4M6QES meets the EMI and EMC standards of EN55022, EN55024, and FCC Part 15 class B. However, the actual EMI and EMC performance may vary depending on the system design and layout.
  • The 1MS1T2B4M6QES is designed to withstand vibrations up to 10G, but it's recommended to consult with Dailywell Electronics Co Ltd for specific vibration testing and recommendations.
  • Dailywell Electronics Co Ltd provides a recommended layout and thermal design guide for the 1MS1T2B4M6QES. Consult the application notes and layout guidelines for optimal thermal performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1MS1T2B4M6QES Overview

Use the download button to access the 1MS1T2B4M6QES schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1MS1T, or try a keyword search, such as Toggle Switches
