Technical Content
Part Image

1N4006 - Taiwan Semiconductor

Description: Diode 800V 1A 2-Pin DO-41

Download 1N4006 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1N4006 - Taiwan Semiconductor - PCB symbol
click to zoom

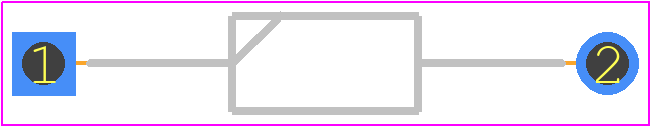

PCB Footprints
1N4006 - Taiwan Semiconductor PCB footprint - Diodes, Axial Diameter Horizontal Mounting - Diodes, Axial Diameter Horizontal Mounting - 1N4006
click to zoom
3D Models
1N4006 - Taiwan Semiconductor - 3D model - Diodes, Axial Diameter Horizontal Mounting - 1N4006
click to zoom

1N4006 Details

  • Manufacturer Part Number:

    1N4006

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    GREEN, PLASTIC PACKAGE-2

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Manufacturer:

    Taiwan Semiconductor

  • YTEOL:

    0

  • Additional Feature:

    HIGH RELIABILITY, LOW POWER LOSS

  • Case Connection:

    ISOLATED

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1.1 V

  • JEDEC-95 Code:

    DO-41

  • JESD-30 Code:

    O-PALF-W2

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    30 A

  • Number of Elements:

    1

  • Number of Phases:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -65 °C

  • Output Current-Max:

    1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    ROUND

  • Package Style:

    LONG FORM

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Rep Pk Reverse Voltage-Max:

    800 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Form:

    WIRE

  • Terminal Position:

    AXIAL

1N4006 Frequently Asked Questions (FAQs)

  • The recommended footprint for the 1N4006 diode is a standard DO-41 package with a lead spacing of 2.54mm and a lead diameter of 0.8mm.
  • While the 1N4006 diode is suitable for general-purpose rectification, it is not recommended for high-frequency switching applications due to its relatively high reverse recovery time (trr) of 30µs. For high-frequency switching, consider using a faster diode with a lower trr.
  • To ensure proper soldering, use a soldering iron with a temperature of 250°C to 300°C, and apply a small amount of solder to the leads. Avoid applying excessive heat or pressure, which can damage the diode.
  • The 1N4006 diode has a maximum operating temperature of 150°C. While it can tolerate high temperatures, it's essential to ensure that the diode is properly heat-sinked and that the ambient temperature does not exceed the maximum rating.
  • Yes, you can use multiple 1N4006 diodes in parallel to increase current handling. However, ensure that each diode has its own heat sink and that the total current is distributed evenly across all diodes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1N4006 Overview

Use the download button to access the 1N4006 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1N400, or try a keyword search, such as Rectifier Diodes
