1N4148 - Microchip

Description: Glass Axial Switching Diode 100 V 200mA Through Hole DO-35, 200 mA, -65 to +175°C

Download 1N4148 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1N4148 - Microchip - PCB symbol
click to zoom

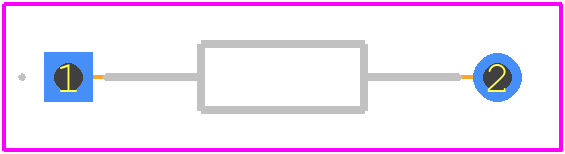

PCB Footprints
1N4148 - Microchip PCB footprint - Other - Other - DO-35 (DO-204AH)_2026
click to zoom

1N4148 Details

  • Manufacturer Part Number:

    1N4148

  • Part Life Cycle Code:

    Active

  • Package Description:

    DO-35, 2 PIN

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    4

  • Application:

    FAST RECOVERY

  • Breakdown Voltage-Min:

    100 V

  • Case Connection:

    ISOLATED

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1.2 V

  • JEDEC-95 Code:

    DO-204AH

  • JESD-30 Code:

    O-LALF-W2

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    2 A

  • Number of Elements:

    1

  • Number of Phases:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -65 °C

  • Output Current-Max:

    0.2 A

  • Package Body Material:

    GLASS

  • Package Shape:

    ROUND

  • Package Style:

    LONG FORM

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    MIL-STD-750

  • Rep Pk Reverse Voltage-Max:

    75 V

  • Reverse Current-Max:

    0.5 µA

  • Reverse Recovery Time-Max:

    0.005 µs

  • Reverse Test Voltage:

    75 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    WIRE

  • Terminal Position:

    AXIAL

1N4148 Frequently Asked Questions (FAQs)

  • The recommended storage temperature for 1N4148 diodes is -65°C to 150°C.
  • While the 1N4148 diode can be used in high-frequency applications, its performance may degrade above 100 MHz due to its internal capacitance and inductance. For high-frequency applications, consider using a diode with a lower capacitance and inductance, such as the 1N916 or 1N360.
  • To prevent electrostatic discharge (ESD) damage, handle 1N4148 diodes with an anti-static wrist strap or mat, and ensure that your workspace is ESD-protected. You can also use ESD-protected packaging and storage materials.
  • The 1N4148 diode has a maximum reverse voltage rating of 100 V. While it can be used in high-voltage applications, it's essential to ensure that the voltage rating is not exceeded to prevent diode failure or damage.
  • Use a soldering iron with a temperature of 260°C (500°F) or less, and avoid applying excessive heat or force to the diode. Use a solder with a low melting point (e.g., 60/40 tin-lead) and ensure that the soldering time is less than 10 seconds.
