1N5338B - onsemi

1N5338B Details

• Manufacturer Part Number:

  1N5338B

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

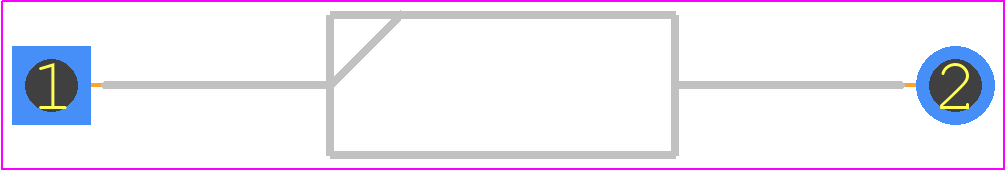

• Part Package Code:

  DO-41

• Package Description:

  PLASTIC, CASE 017AA-01, 2 PIN

• Pin Count:

  2

• Manufacturer Package Code:

  CASE 017AA-01

• ECCN Code:

  EAR99

• HTS Code:

  8541.10.00.50

• Manufacturer:

  onsemi

• YTEOL:

  0

• Case Connection:

  ISOLATED

• Configuration:

  SINGLE

• Diode Element Material:

  SILICON

• Diode Type:

  ZENER DIODE

• Dynamic Impedance-Max:

  1.5 Ω

• JEDEC-95 Code:

  DO-41

• JESD-30 Code:

  O-PALF-W2

• JESD-609 Code:

  e3

• Knee Impedance-Max:

  400 Ω

• Number of Elements:

  1

• Number of Terminals:

  2

• Operating Temperature-Max:

  200 °C

• Operating Temperature-Min:

  -65 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  ROUND

• Package Style:

  LONG FORM

• Peak Reflow Temperature (Cel):

  260

• Polarity:

  UNIDIRECTIONAL

• Power Dissipation-Max:

  5 W

• Qualification Status:

  Not Qualified

• Reference Voltage-Nom:

  5.1 V

• Reverse Current-Max:

  1 µA

• Reverse Test Voltage:

  1 V

• Surface Mount:

  NO

• Technology:

  ZENER

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  WIRE

• Terminal Position:

  AXIAL

• Time@Peak Reflow Temperature-Max (s):

  40

• Voltage Tol-Max:

  5%

• Working Test Current:

  240 mA
