1N5358B - Multicomp Pro

Description: MULTICOMP - 1N5358B - DIODE, ZENER, 5W, 22V, 5%, DO-201AE

Download 1N5358B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1N5358B - Multicomp Pro - PCB symbol
click to zoom
PCB Footprints

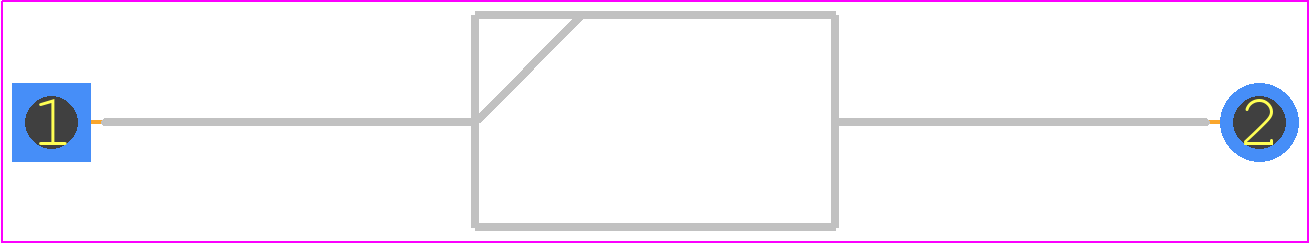

1N5358B - Multicomp Pro PCB footprint - Diodes, Axial Diameter Horizontal Mounting - Diodes, Axial Diameter Horizontal Mounting - DO-201AE
click to zoom
3D Models
1N5358B - Multicomp Pro - 3D model - Diodes, Axial Diameter Horizontal Mounting - DO-201AE
click to zoom

1N5358B Details

  • Manufacturer Part Number:

    1N5358B

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    SPC Multicomp

  • YTEOL:

    5.55

  • Case Connection:

    ISOLATED

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    ZENER DIODE

  • JEDEC-95 Code:

    DO-201AE

  • JESD-30 Code:

    O-XALF-W2

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    ROUND

  • Package Style:

    LONG FORM

  • Polarity:

    UNIDIRECTIONAL

  • Power Dissipation-Max:

    5 W

  • Reference Voltage-Nom:

    22 V

  • Surface Mount:

    NO

  • Technology:

    ZENER

  • Terminal Form:

    WIRE

  • Terminal Position:

    AXIAL

  • Voltage Tol-Max:

    5%

  • Working Test Current:

    50 mA

1N5358B Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 1N5358B is between 250°C to 260°C for a maximum of 10 seconds.
  • The 1N5358B is a standard rectifier diode and not optimized for high-frequency applications. For high-frequency applications, consider using a Schottky diode or a fast-recovery diode.
  • While the 1N5358B can be used in a switching power supply, it's not the best choice due to its relatively slow recovery time (trr). Consider using a faster diode, such as a 1N4933 or 1N4934, for switching power supply applications.
  • The maximum surge current rating for the 1N5358B is 150A for a single 10ms pulse.
  • Yes, the 1N5358B diode made by SPC Multicorp is RoHS (Restriction of Hazardous Substances) compliant.
