1N5364B - Multicomp Pro

Description: DIODE, ZENER, 5W, 33V, 5%, DO-201AE

Download 1N5364B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1N5364B - Multicomp Pro - PCB symbol
click to zoom
PCB Footprints

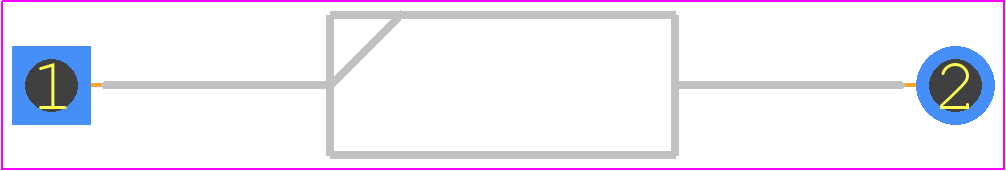

1N5364B - Multicomp Pro PCB footprint - Diodes, Axial Diameter Horizontal Mounting - Diodes, Axial Diameter Horizontal Mounting - 1N5364B
click to zoom

1N5364B Details

  • Manufacturer Part Number:

    1N5364B

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    SPC Multicomp

  • YTEOL:

    5.55

  • Case Connection:

    ISOLATED

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    ZENER DIODE

  • JEDEC-95 Code:

    DO-201AE

  • JESD-30 Code:

    O-XALF-W2

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    ROUND

  • Package Style:

    LONG FORM

  • Polarity:

    UNIDIRECTIONAL

  • Power Dissipation-Max:

    5 W

  • Reference Voltage-Nom:

    33 V

  • Surface Mount:

    NO

  • Technology:

    ZENER

  • Terminal Form:

    WIRE

  • Terminal Position:

    AXIAL

  • Voltage Tol-Max:

    5%

  • Working Test Current:

    40 mA

1N5364B Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 1N5364B is between 250°C to 260°C for a maximum of 10 seconds.
  • While the 1N5364B is a general-purpose diode, it's not ideal for high-frequency applications due to its relatively high capacitance and inductance. For high-frequency applications, consider using a diode with a lower capacitance and inductance, such as a Schottky diode.
  • The 1N5364B is not recommended for switching power supply applications due to its relatively slow switching time and high reverse recovery time. A faster diode with a shorter reverse recovery time, such as a fast-recovery diode or a Schottky diode, is more suitable for switching power supply applications.
  • The maximum allowable voltage derating for the 1N5364B is typically 10% to 15% of the maximum rated voltage, depending on the operating conditions and environmental factors. However, it's recommended to consult the manufacturer's application notes or contact their technical support for specific guidance.
  • Yes, the 1N5364B is available in a lead-free version, which is RoHS-compliant and suitable for use in environmentally friendly designs.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1N5364B Overview

Use the download button to access the 1N5364B schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 1N536, or try a keyword search, such as Zener Diodes
