1N5821RLG - onsemi

1N5821RLG Details

• Manufacturer Part Number:

  1N5821RLG

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

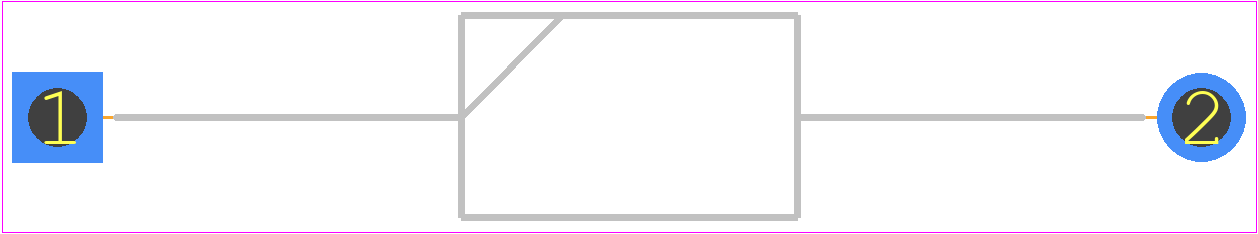

• Part Package Code:

  Axial Lead 9.65x5.33mm, 25.4x1.22mm Pkg, Lead len/dia

• Pin Count:

  2

• Manufacturer Package Code:

  267-05

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8541.10.00.80

• Factory Lead Time:

  6 Weeks

• Manufacturer:

  onsemi

• YTEOL:

  5.95

• Additional Feature:

  FREE WHEELING DIODE, LOW POWER LOSS

• Application:

  EFFICIENCY

• Breakdown Voltage-Min:

  30 V

• Case Connection:

  ISOLATED

• Configuration:

  SINGLE

• Diode Element Material:

  SILICON

• Diode Type:

  RECTIFIER DIODE

• Forward Voltage-Max (VF):

  0.38 V

• JEDEC-95 Code:

  DO-201AD

• JESD-30 Code:

  O-PALF-W2

• JESD-609 Code:

  e3

• Non-rep Pk Forward Current-Max:

  80 A

• Number of Elements:

  1

• Number of Phases:

  1

• Number of Terminals:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -65 °C

• Output Current-Max:

  3 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  ROUND

• Package Style:

  LONG FORM

• Packing Method:

  TR

• Qualification Status:

  Not Qualified

• Rep Pk Reverse Voltage-Max:

  30 V

• Reverse Current-Max:

  2000 µA

• Reverse Test Voltage:

  30 V

• Surface Mount:

  NO

• Technology:

  SCHOTTKY

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  WIRE

• Terminal Position:

  AXIAL
