1PS74SB23,125 - Nexperia

Description: Schottky Diodes & Rectifiers 1PS74SB23/SOT457/SC-74

Download 1PS74SB23,125 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

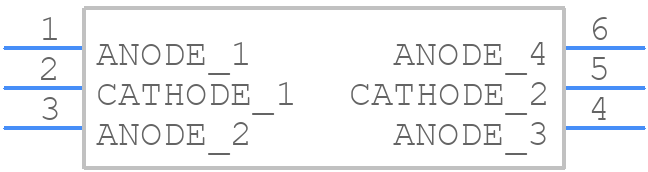

1PS74SB23,125 - Nexperia - PCB symbol
click to zoom
PCB Footprints
1PS74SB23,125 - Nexperia PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - SOT457 (SC-74)
click to zoom
3D Models
1PS74SB23,125 - Nexperia - 3D model - SOT23 (6-Pin) - SOT457 (SC-74)
click to zoom

1PS74SB23,125 Details

  • Manufacturer Part Number:

    1PS74SB23,125

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSOP

  • Pin Count:

    6

  • Manufacturer Package Code:

    SOT457

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    5.98

  • Additional Feature:

    HIGH SURGE CAPABILITY

  • Application:

    GENERAL PURPOSE

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Phases:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Output Current-Max:

    1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    IEC-60134

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

1PS74SB23,125 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the 1PS74SB23,125 is a standard SOT23 package with a 1.3mm x 1.3mm body size and a 0.5mm pitch. A minimum pad size of 0.6mm x 0.6mm is recommended for reliable soldering.
  • To ensure reliable operation of the 1PS74SB23,125 in high-temperature environments, it is recommended to follow proper thermal design and layout guidelines, including providing adequate heat dissipation paths and avoiding thermal hotspots. Additionally, consider using thermal interface materials and heat sinks if necessary.
  • The 1PS74SB23,125 has built-in ESD protection, but it is still recommended to follow proper ESD handling and storage procedures to prevent damage. A minimum of 2kV HBM (Human Body Model) and 100V MM (Machine Model) ESD protection is recommended.
  • Yes, the 1PS74SB23,125 can be used in high-frequency applications up to 100 MHz. However, it is recommended to follow proper PCB layout and design guidelines to minimize parasitic inductance and capacitance, and to ensure signal integrity.
  • The 1PS74SB23,125 should be stored in a dry, cool place away from direct sunlight and moisture. It is recommended to store the devices in their original packaging or in a shielded container to prevent ESD damage. Handling should be done with proper ESD protection equipment and procedures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1PS74SB23,125 Overview

Use the download button to access the 1PS74SB23,125 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1PS74, or try a keyword search, such as Rectifier Diodes

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
