2-1393302-3 - TE Connectivity

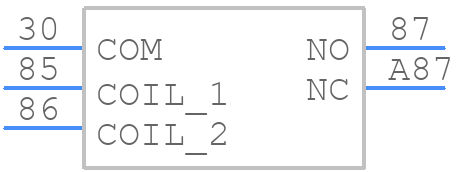

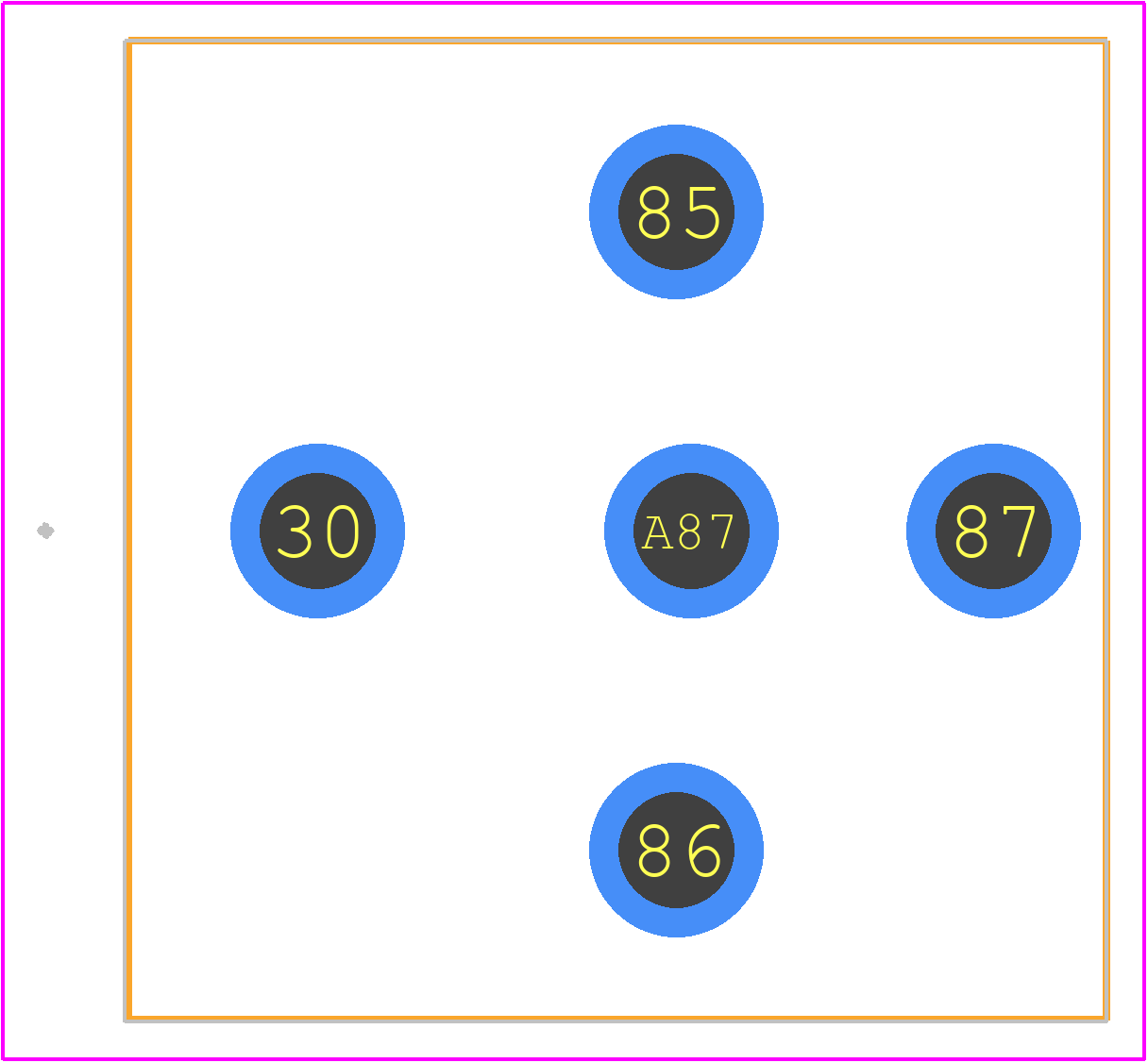

2-1393302-3 Details

• Manufacturer Part Number:

  2-1393302-3

• Brand Name:

  TE Connectivity

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• Reach Compliance Code:

  Compliant

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.05

• Manufacturer:

  TE Connectivity

• YTEOL:

  6.77

• Body Breadth:

  25.9 mm

• Body Height:

  24.9 mm

• Body Length or Diameter:

  25.9 mm

• Coil Current(DC)-Max:

  0.132 A

• Coil Operate Voltage(DC):

  7.2 V

• Coil Power:

  1600 mW

• Coil Release Voltage(DC):

  1.6 V

• Coil Resistance:

  90 Ω

• Coil Voltage(DC)-Max:

  12 V

• Coil Voltage-Nom:

  12 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Rating R Load:

  .75A@12VAC

• Contact Current(AC)-Max:

  60 A

• Contact Current(DC)-Max:

  60 A

• Contact (DC) Max Rating R Load:

  .75A@12VDC

• Contact Voltage(AC)-Max:

  12 V

• Contact Voltage(DC)-Max:

  12 V

• Contact/Output Supply Type:

  AC/DC

• Dielectric Strength Between Coil and Contacts:

  500 Vrms

• Dielectric Strength Between Open Contacts:

  500 Vrms

• Electrical Life:

  200000 Cycle(s)

• End Contact Material:

  SILVER ALLOY

• Input Switching Control Type:

  Random

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Terminals:

  5

• Operate Time:

  7 ms

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  BULK

• Physical Dimension:

  26.2mm x 26.2mm x 25.2mm

• Reference Standard:

  EIA; EN; FMVSS; IEC

• Relay Action:

  MOMENTARY

• Relay Form:

  1 FORM C

• Relay Function:

  SPDT

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  2 ms

• Sealing:

  DUST PROOF

• Surface Mount:

  NO

• Termination Type:

  SOLDER

• Weight:

  35 g
