Part Image

2-146134-1 - TE Connectivity

Description: Body Features: Primary Product Color Black | Connector Profile Standard | Configuration Features: Number of Rows 2 | Connector Contact Load Condition Fully Loaded | Board-to-Board Configuration Parallel | Number of Positions 30 | PCB Mount Orientation Vertical | Contact Features: Contact Mating Area Plating Material Thickness 2.54 – 5.08 MICM | Contact Type Pin | Contact Shape & Form Square | Contact Mating Area Plating Material Tin | Contact Underplating Material Nickel | Contact Current Rating (Max) 3 A

Download 2-146134-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2-146134-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

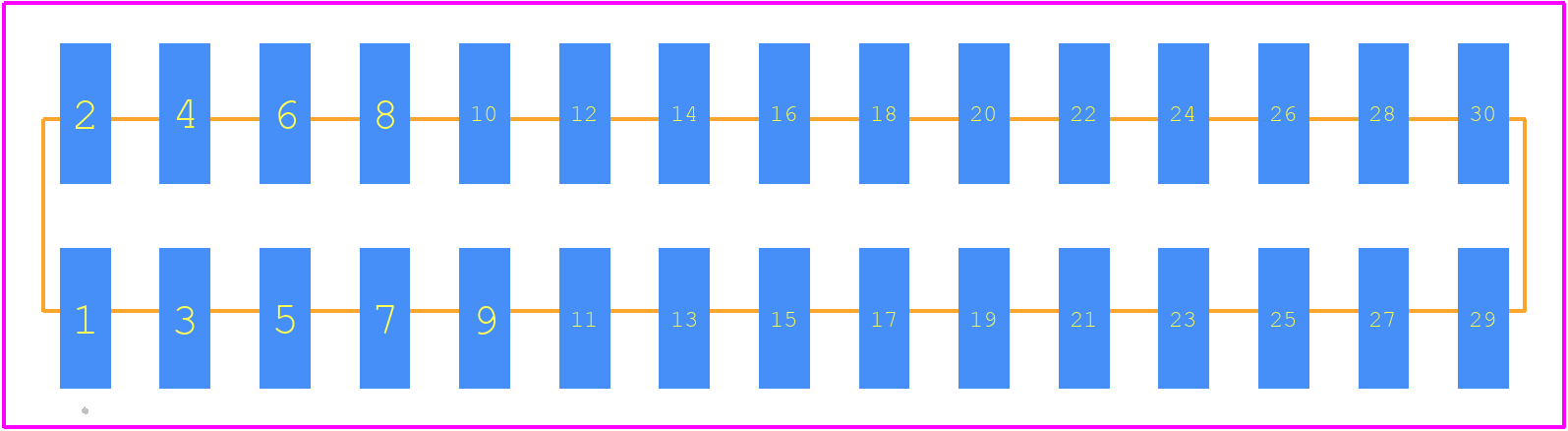

2-146134-1 - TE Connectivity PCB footprint - Other - Other - 2-146134-1-3
click to zoom
3D Models
2-146134-1 - TE Connectivity - 3D model - Other - 2-146134-1-3
click to zoom

2-146134-1 Details

  • Manufacturer Part Number:

    2-146134-1

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9.1

  • Additional Feature:

    AMPMODU

  • Body Breadth:

    0.192 inch

  • Body Depth:

    0.153 inch

  • Body Length:

    1.484 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    3A

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -65 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    5.207 mm

  • Panel Mount:

    NO

  • Plating Thickness:

    200u inch

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    CSA, LR, U

  • Terminal Length:

    0.09 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    30

  • UL Flammability Code:

    94V-0

2-146134-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 2-146134-1 connector is typically between 0.5-1.5 Nm (7-21 in-lbs), but it's best to consult the TE Connectivity application notes or contact their technical support for specific guidance.
  • The 2-146134-1 connector is designed to meet the requirements of various industries, including automotive and industrial, which often involve high-vibration environments. However, it's essential to evaluate the specific application and consult with TE Connectivity or a qualified engineer to ensure the connector meets the necessary vibration resistance requirements.
  • The 2-146134-1 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand some humidity. However, it's crucial to review the datasheet and application notes to ensure the connector meets the specific environmental requirements of your application. Additionally, you may need to consider additional sealing or protection measures to ensure reliable operation.
  • The mating cycle life of the 2-146134-1 connector is typically around 500-1000 cycles, depending on the specific application and environmental conditions. However, this value may vary, and it's recommended to consult TE Connectivity's application notes or contact their technical support for more detailed information.
  • Yes, it's essential to follow TE Connectivity's recommended PCB layout guidelines and design considerations to ensure reliable operation and minimize the risk of damage or failure. These guidelines can be found in the datasheet or application notes, and it's recommended to consult with a qualified engineer or TE Connectivity's technical support if you're unsure.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2-146134-1 Overview

Use the download button to access the 2-146134-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2-146, or try a keyword search, such as Headers and Edge Type Connectors
