2-1571552-5 - TE Connectivity

2-1571552-5 Details

• Manufacturer Part Number:

  2-1571552-5

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  LEAD FREE

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  TE Connectivity

• YTEOL:

  0

• Additional Feature:

  STANDARD: UL 94V-0

• Body Breadth:

  0.4 inch

• Body Depth:

  0.105 inch

• Body Length:

  0.9 inch

• Contact Finish Mating:

  NOT APPLICABLE

• Contact Finish Termination:

  Tin (Sn)

• Contact Material:

  NOT SPECIFIED

• Contact Style:

  RND PIN-SKT

• Current Rating:

  3 A

• Device Socket Type:

  IC SOCKET

• Device Type Used On:

  DIP18

• Dielectric Withstanding Voltage:

  1000VAC V

• Housing Material:

  THERMOPLASTIC POLYESTER

• Insulation Resistance:

  5000000000 Ω

• JESD-609 Code:

  e3

• Mating Contact Pitch:

  0.1 inch

• Mounting Style:

  STRAIGHT

• Number of Contacts:

  18

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -55 °C

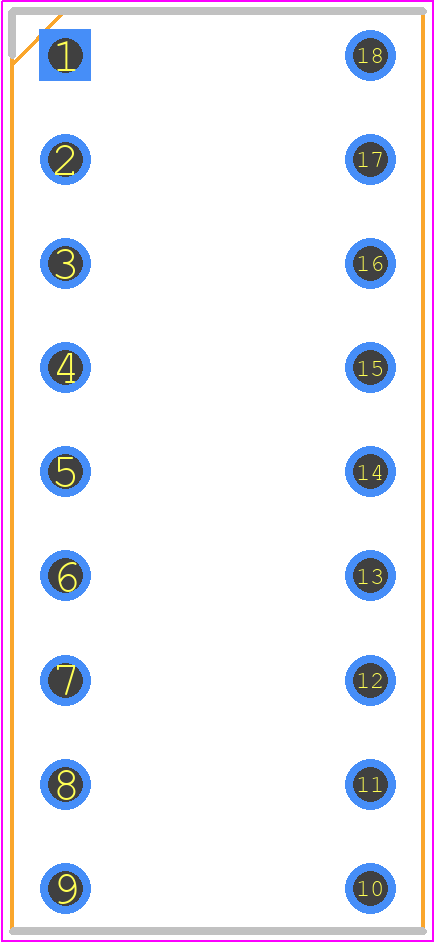

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  0.30000000000000004 mm

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER
