2-1571552-7 - TE Connectivity

Description: DIPLOMATE 800 Series, DIP Sockets, Stamped & Formed, 22 Position, Standard Connector Profile, Row-to-Row Spacing .4 in [10.16 mm], Vertical, Straight

Download 2-1571552-7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

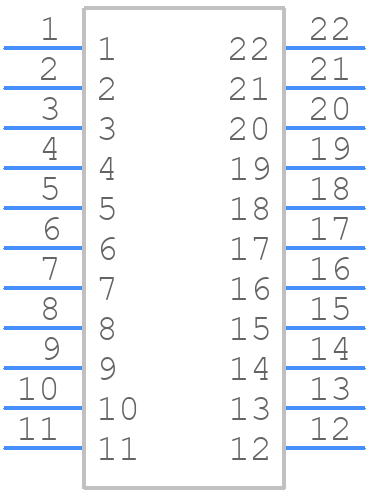

Symbol
2-1571552-7 - TE Connectivity - PCB symbol
click to zoom

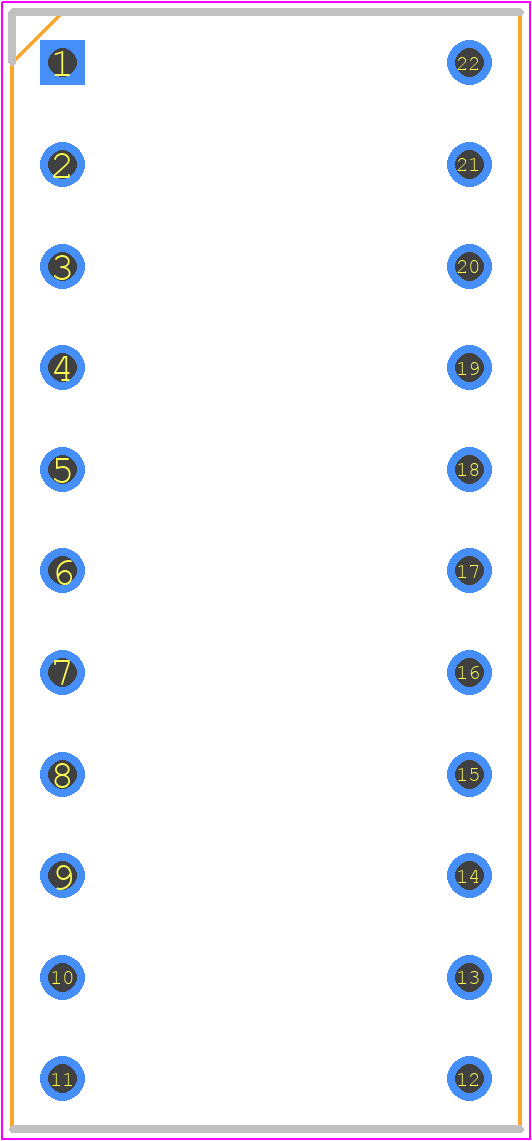

PCB Footprints
2-1571552-7 - TE Connectivity PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DIL SOCKET 2.54 x 10.16mm
click to zoom
3D Models
2-1571552-7 - TE Connectivity - 3D model - Dual-In-Line Sockets - DIL SOCKET 2.54 x 10.16mm
click to zoom

2-1571552-7 Details

  • Manufacturer Part Number:

    2-1571552-7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LEAD FREE

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Additional Feature:

    STANDARD: UL 94V-0

  • Body Breadth:

    0.5 inch

  • Body Depth:

    0.105 inch

  • Body Length:

    1.1 inch

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    RND PIN-SKT

  • Current Rating:

    3 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP22

  • Dielectric Withstanding Voltage:

    1400VAC V

  • Housing Material:

    THERMOPLASTIC POLYESTER

  • Insulation Resistance:

    5000000000 Ω

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    22

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    0.4 mm

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

2-1571552-7 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow the recommended torque to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2-1571552-7 connector is designed to withstand vibrations and is suitable for use in high-vibration applications. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 2-1571552-7 connector is designed to operate in a temperature range of -40°C to 105°C (-40°F to 221°F) and can withstand humidity up to 95%. However, it's essential to follow the recommended storage and operating conditions to ensure reliable performance.
  • Yes, the 2-1571552-7 connector is designed to be compatible with other TE Connectivity products, such as cable assemblies and connectors. However, it's essential to verify compatibility and follow the recommended mating and unmating procedures to ensure reliable connections.
  • The recommended wire size for the 2-1571552-7 connector is 24-20 AWG (0.25-0.5 mm²). It's essential to use the recommended wire size and type to ensure reliable connections and prevent damage to the connector.
