Part Image

2-1571552-9 - TE Connectivity

Description: 28-way 0.6in Economy DIL socket

Download 2-1571552-9 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

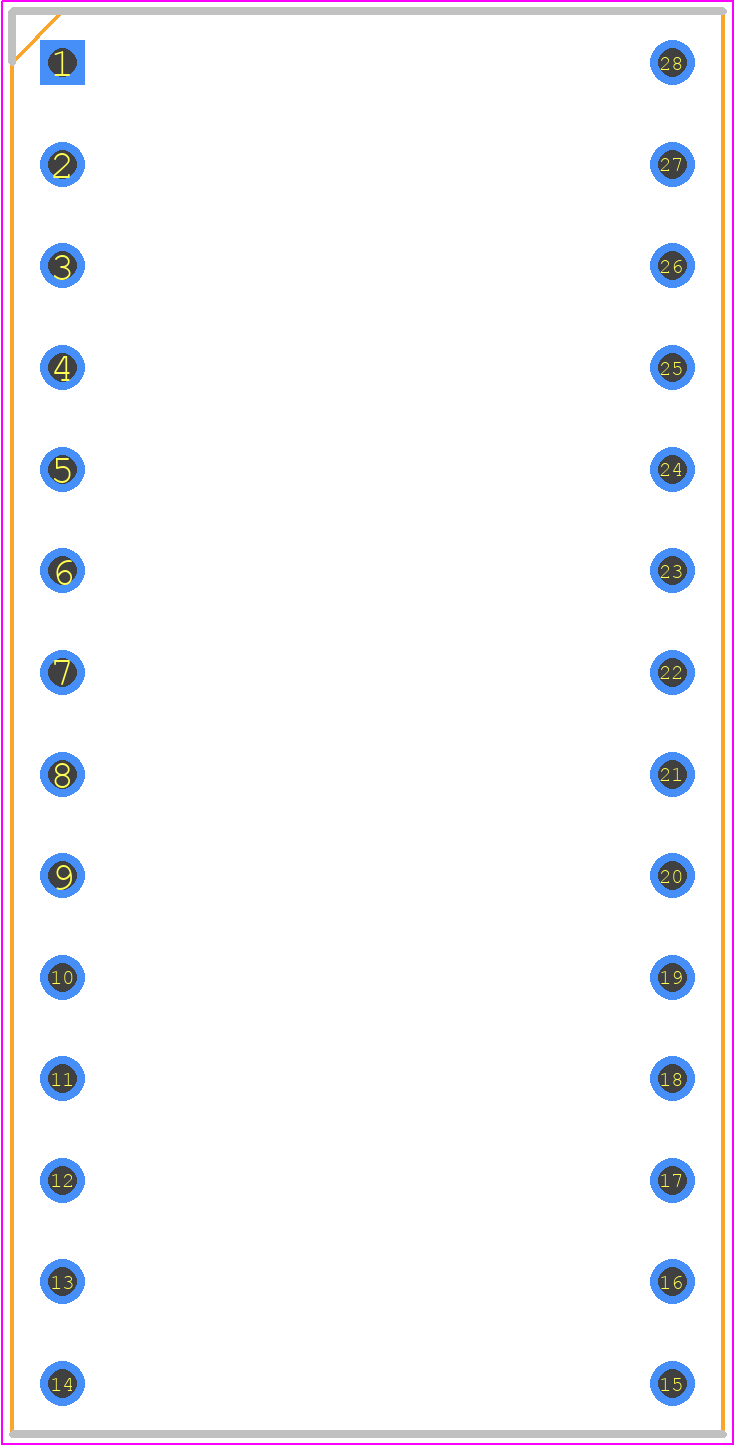

2-1571552-9 - TE Connectivity PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 2-1571552-9
click to zoom
3D Models
2-1571552-9 - TE Connectivity  - 3D model - Dual-In-Line Sockets - 2-1571552-9
click to zoom

2-1571552-9 Details

  • Manufacturer Part Number:

    2-1571552-9

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LEAD FREE

  • Reach Compliance Code:

    compliant

  • Manufacturer:

    TE Connectivity

  • Risk Rank:

    7.29

  • YTEOL:

    0

  • Additional Feature:

    STANDARD: UL 94V-0

  • Body Breadth:

    0.7 inch

  • Body Depth:

    0.105 inch

  • Body Length:

    1.4 inch

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    RND PIN-SKT

  • Current Rating:

    3 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP28

  • Dielectric Withstanding Voltage:

    1400VAC V

  • Housing Material:

    THERMOPLASTIC POLYESTER

  • Insulation Resistance:

    5000000000 Ω

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    28

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    0.6000000000000001 mm

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2-1571552-9 Overview

Use the download button to access the 2-1571552-9 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2-157, or try a keyword search, such as Sockets and Chip Carriers
