2-1586037-0 - TE Connectivity

Description: PCB Mount Header, Vertical, Wire-to-Board, 20 Position, 4.2 mm [.165 in] Centerline, Fully Shrouded, Tin, Through Hole - Solder, Power, Natural, Bag

Download 2-1586037-0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2-1586037-0 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

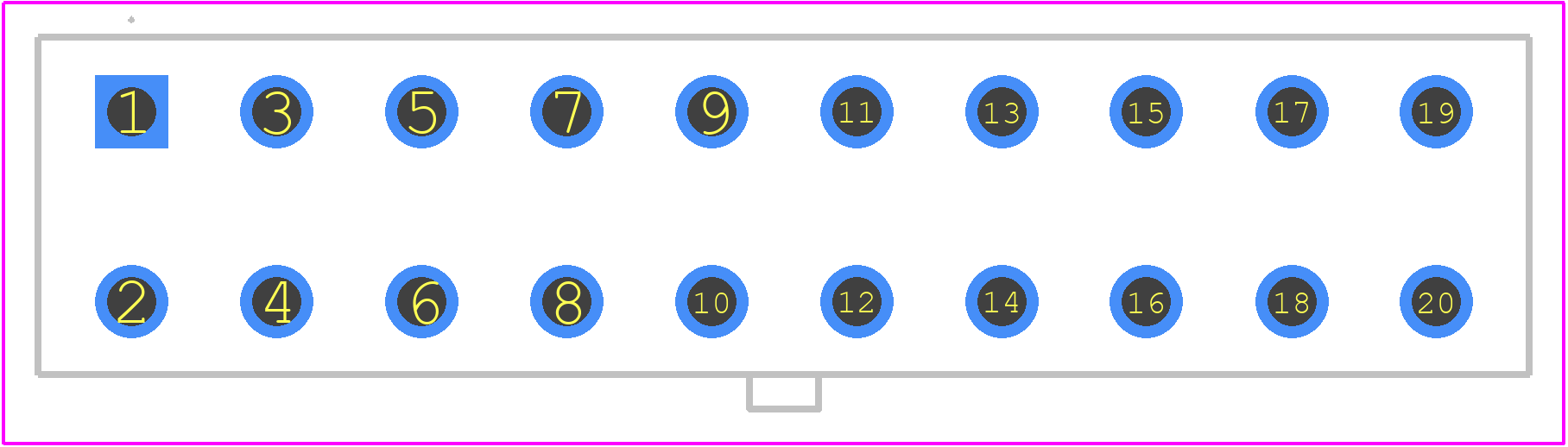

2-1586037-0 - TE Connectivity PCB footprint - Other - Other - 2-1586037-0-2
click to zoom
3D Models
2-1586037-0 - TE Connectivity - 3D model - Other - 2-1586037-0-2
click to zoom

2-1586037-0 Details

  • Manufacturer Part Number:

    2-1586037-0

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Connector Type:

    BOARD CONNECTOR

2-1586037-0 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow the recommended torque to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2-1586037-0 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications with high vibration levels.
  • Yes, the 2-1586037-0 connector is designed for outdoor use and can withstand harsh environmental conditions. It has a IP67 rating, which means it's protected against dust and water ingress.
  • The operating temperature range for the 2-1586037-0 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector operates within this range to maintain its performance and reliability.
  • Yes, the 2-1586037-0 connector is designed to be compatible with other TE Connectivity products, including their range of connectors, cables, and accessories. This allows for easy integration into existing systems and designs.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2-1586037-0 Overview

Use the download button to access the 2-1586037-0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2-158, or try a keyword search, such as Headers and Edge Type Connectors
