2-1734741-0 - TE Connectivity

Description: .5 mm [.02 in] Centerline, Zero Insertion Force (ZIF), Vertical, Surface Mount, Stuffer Actuator, Gold Flash, 20 Position, FPC Connectors

Download 2-1734741-0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

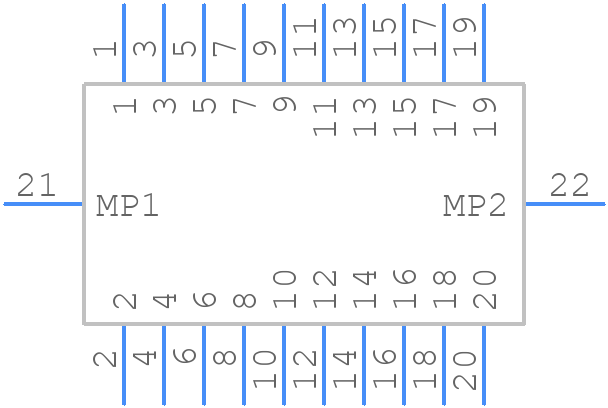

2-1734741-0 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
2-1734741-0 - TE Connectivity PCB footprint - Other - Other - 2-1734741-0-3
click to zoom
3D Models
2-1734741-0 - TE Connectivity - 3D model - Other - 2-1734741-0-3
click to zoom

2-1734741-0 Details

  • Manufacturer Part Number:

    2-1734741-0

  • Brand Name:

    TE Connectivity

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Body Breadth:

    0.15 inch

  • Body Depth:

    0.163 inch

  • Body Length:

    0.618 inch

  • Body/Shell Style:

    RECEPTACLE

  • Cable Types:

    FFC, FPC

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    STAGGERED

  • Contact Style:

    BELLOWED TYPE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    ZIF N

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYAMIDE9T

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    .5A

  • Mating Contact Pitch:

    0.020 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    2.4 mm

  • Panel Mount:

    NO

  • Plating Thickness:

    120u inch

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0

2-1734741-0 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals of the 2-1734741-0 connector is 0.5-0.7 Nm (5-7 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2-1734741-0 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, making it suitable for use in applications such as industrial control systems, transportation, and more.
  • While the datasheet specifies AWG 20-24 wire sizes, the 2-1734741-0 connector can accommodate other wire sizes with the use of adapters or specialized wire termination systems. However, it's essential to consult with TE Connectivity or a qualified engineer to ensure compatibility and reliable connections.
  • The 2-1734741-0 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). This makes it suitable for use in a wide range of applications, from industrial control systems to automotive and aerospace.
  • The 2-1734741-0 connector has a sealed design that provides protection against moisture and humidity. However, it's essential to consult with TE Connectivity or a qualified engineer to determine the connector's suitability for use in specific harsh environments, as additional protection or specialized materials may be required.
