2-1734839-2 - TE Connectivity

Description: FPC CONN. 0.5MM PITCH T/C,22P//

Download 2-1734839-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

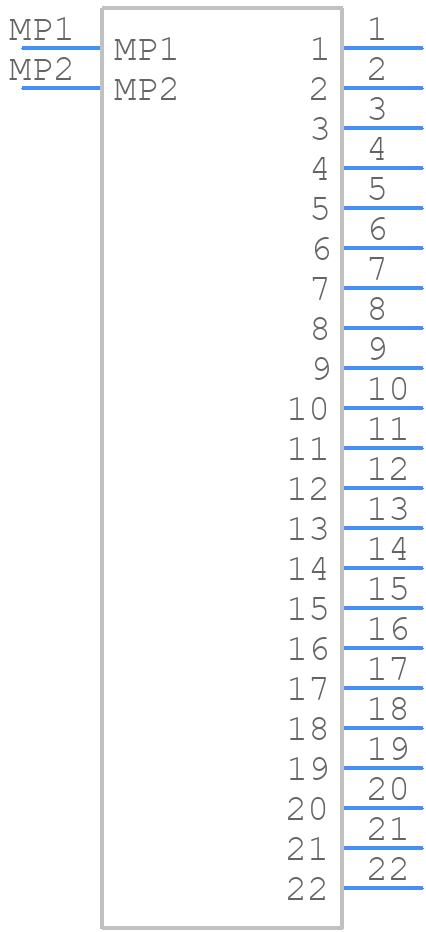

2-1734839-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
2-1734839-2 - TE Connectivity PCB footprint - Other - Other - 2-1734839-2-4
click to zoom
3D Models
2-1734839-2 - TE Connectivity - 3D model - Other - 2-1734839-2-4
click to zoom

2-1734839-2 Details

  • Manufacturer Part Number:

    2-1734839-2

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Body Breadth:

    0.2 inch

  • Body Depth:

    0.08 inch

  • Body Length:

    0.647 inch

  • Cable Types:

    FFC, FPC

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    35 mΩ

  • Contact Style:

    BELLOWED TYPE

  • DIN Conformance:

    NO

  • Durability:

    15 Cycles

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    ZIF N

  • Insulation Resistance:

    50000000 Ω

  • Insulator Color:

    NATURAL

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    .5A

  • Mating Contact Pitch:

    0.020 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Panel Mount:

    NO

  • Plating Thickness:

    .984u inch

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL, CSA

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    22

  • UL Flammability Code:

    94V-0

  • Withdrawl Force-Min:

    ZIF N
