2-1761713-7 - TE Connectivity

Description: Body Features: Connector Profile Low | Primary Product Color Blue | Configuration Features: Number of Rows 2 | Number of Positions 20 | PCB Mount Orientation Vertical | Contact Features: PCB Contact Termination Area Plating Material Thickness 100 MICIN | Contact Base Material Phosphor Bronze | Mating Square Post Dimension .025 INCH | Mating Square Post Dimension .64 MM | Contact Shape & Form Square | Contact Mating Area Plating Material Thickness 30 MICIN | PCB Contact Termination Area Plating Material Tin

Download 2-1761713-7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2-1761713-7 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

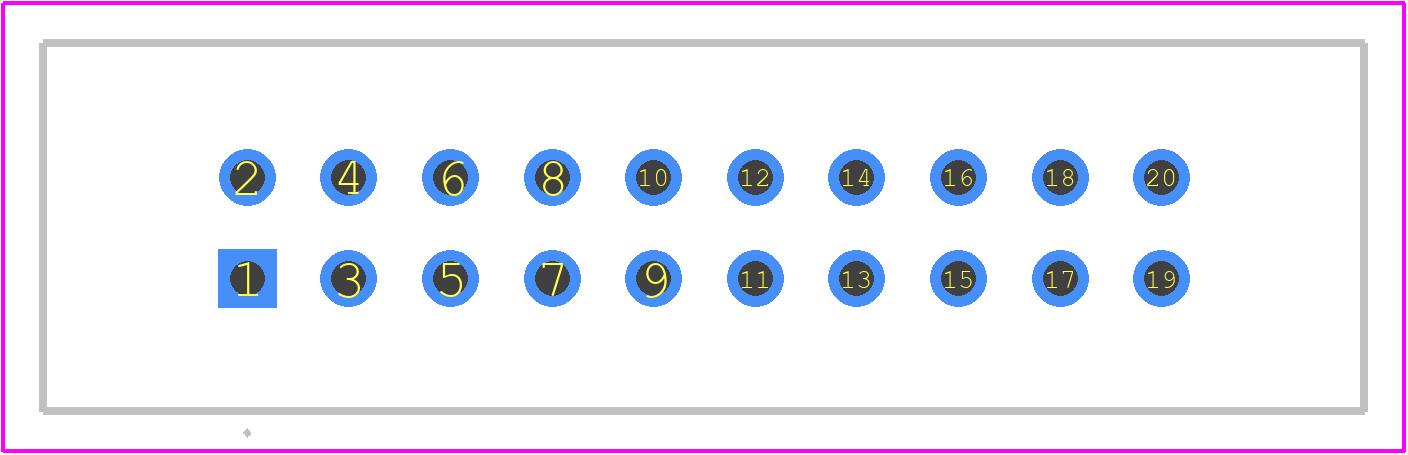

2-1761713-7 - TE Connectivity PCB footprint - Other - Other - 2-1761713-7-1
click to zoom
3D Models
2-1761713-7 - TE Connectivity - 3D model - Other - 2-1761713-7-1
click to zoom

2-1761713-7 Details

  • Manufacturer Part Number:

    2-1761713-7

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    8 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9.1

  • Additional Feature:

    LOW PROFILE

  • Body Depth:

    0.4 inch

  • Body Length:

    1.3 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLUE

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 2:

    EJECT LATCH

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Reference Standard:

    UL

  • Terminal Length:

    0.162 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0

2-1761713-7 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 2-1761713-7 connector is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow the recommended torque specification to ensure proper mating and prevent damage to the connector.
  • Yes, the 2-1761713-7 connector is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications where vibration and shock are present, such as in industrial, automotive, or aerospace environments.
  • The 2-1761713-7 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand high humidity. However, it's essential to follow the recommended operating conditions and environmental specifications to ensure reliable performance.
  • Yes, the 2-1761713-7 connector is designed to be compatible with other TE Connectivity products, including cables, connectors, and accessories. It's essential to verify compatibility before integrating the connector into your system.
  • The typical lead time for delivery of the 2-1761713-7 connector varies depending on the region, quantity, and availability. It's recommended to check with TE Connectivity or an authorized distributor for the most up-to-date lead time information.
