Part Image

2-1904058-5 - TE Connectivity

Description: Body Features: Product Weight .6 OZ | Product Weight 17 G | Contact Features: Contact Arrangement 1 Form X (NO - DM) | Contact Base Material Silver Alloy | Contact Current Class <20 AMP | Dimensions: Product Width .815 INCH | Product Height .76 INCH | Width Class (Mechanical) 20 – 25 MM | Product Width 20.7 MM | Product Height 19.3 MM | Product Length 1.006 INCH | Length Class (Mechanical) 25 – 30 MM | Height Class (Mechanical) 16 – 20 MM | Product Length 25.55 MM | Electrical Characteristics: Insulat

Download 2-1904058-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2-1904058-5 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

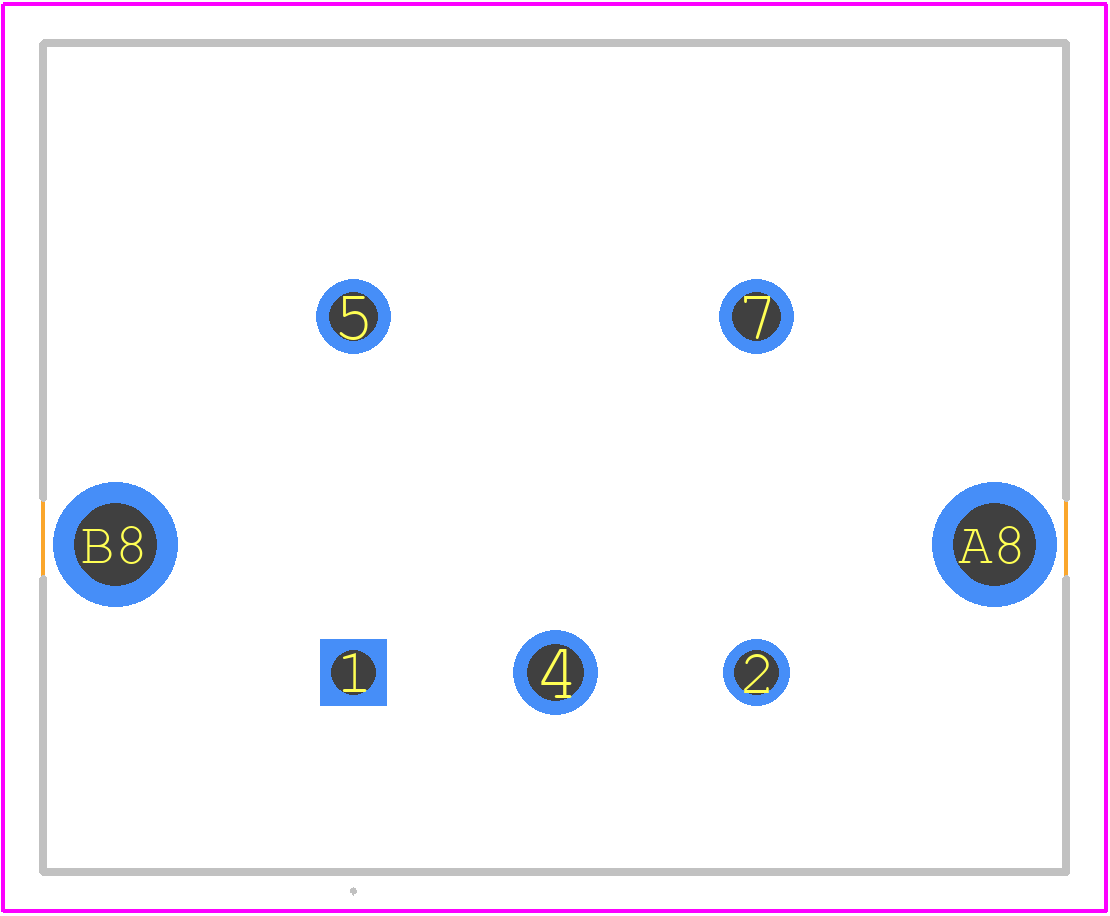

2-1904058-5 - TE Connectivity PCB footprint - Other - Other - 2-1904058-5-3
click to zoom
3D Models
2-1904058-5 - TE Connectivity - 3D model - Other - 2-1904058-5-3
click to zoom

2-1904058-5 Details

  • Manufacturer Part Number:

    2-1904058-5

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    20.7 mm

  • Body Height:

    19.3 mm

  • Body Length or Diameter:

    25.55 mm

  • Coil Power:

    2900 mW

  • Coil Resistance:

    50 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Contact Voltage(DC)-Max:

    450 V

  • Dielectric Strength Between Coil and Contacts:

    2000 Vrms

  • Dielectric Strength Between Open Contacts:

    2000 Vrms

  • End Contact Material:

    SILVER ALLOY

  • Mounting Feature:

    PANEL MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Relay Action:

    MOMENTARY

  • Relay Type:

    POWER/SIGNAL RELAY

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

  • Weight:

    17 g

2-1904058-5 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw terminals.
  • Yes, the 2-1904058-5 connector is designed to withstand vibrations and is suitable for use in high-vibration environments.
  • The operating temperature range for the 2-1904058-5 connector is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 2-1904058-5 connector is designed for outdoor use and can withstand exposure to moisture and humidity.
  • No, the 2-1904058-5 connector is designed for use with wire sizes AWG 20-24. Using a larger wire size may compromise the connector's performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2-1904058-5 Overview

Use the download button to access the 2-1904058-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2-190, or try a keyword search, such as Power/Signal Relays

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
