2-1969584-8 footprint, schematic symbol and 3D model by TE Connectivity

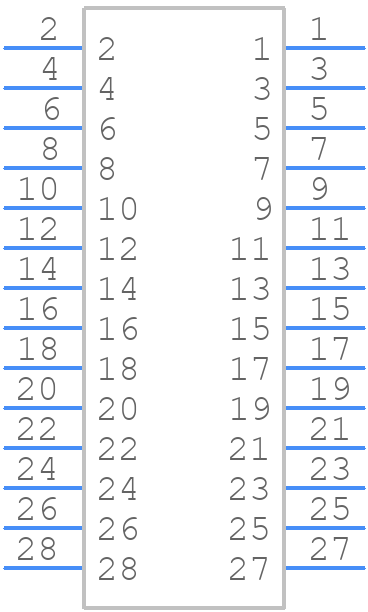

Symbol

click to zoom

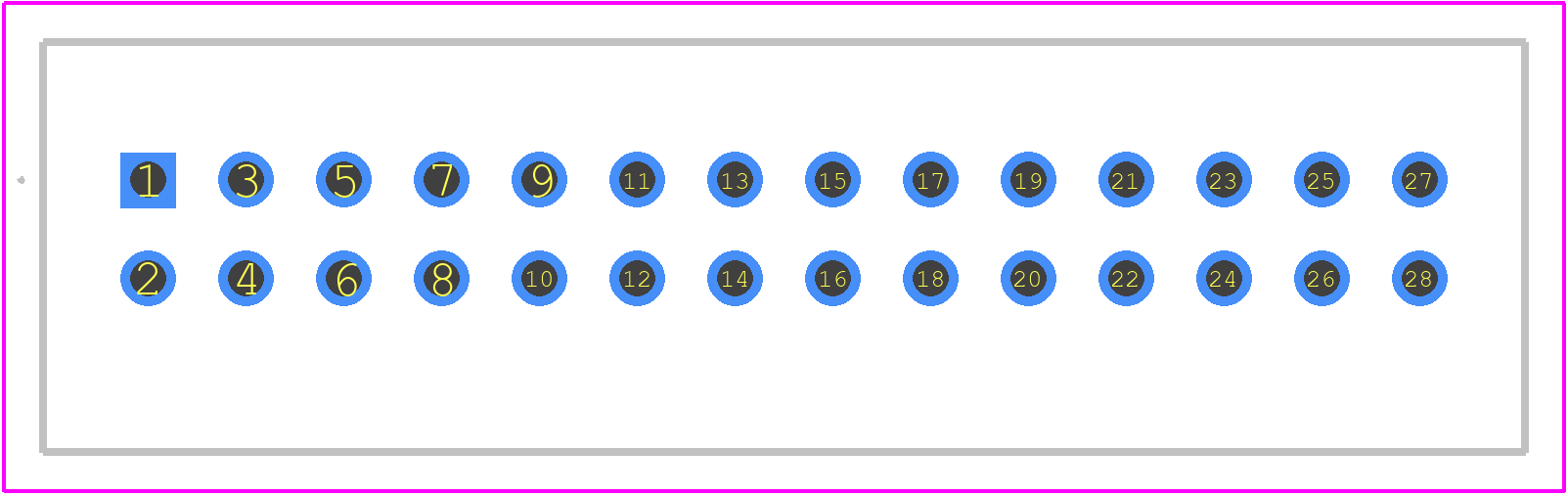

PCB Footprints

2-1969584-8 - TE Connectivity PCB footprint - Other - Other - 2-1969584-8-1

click to zoom

3D Models

2-1969584-8 - TE Connectivity - 3D model - Other - 2-1969584-8-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 2-1969584-8
Part Number 2-1969584-8
Manufacturer TE Connectivity
Pin Count 28
Part Category Connector
Package Category Other
Footprint Name Other - 2-1969584-8-1
Released Date Jul 24, 2026
Pinout / Pin List Click Here (Member Only)

2-1969584-8 Details

Manufacturer Part Number:
2-1969584-8
Brand Name:
TE Connectivity
Rohs Code:
Yes
Part Life Cycle Code:
Active
Reach Compliance Code:
Unknown
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
TE Connectivity
YTEOL:
7
Body Breadth:
0.4 inch
Body Depth:
0.386 inch
Body Length:
1.492 inch
Body/Shell Style:
PLUG
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
Contact Style:
RND PIN-SKT
Empty Shell:
NO
Filter Feature:
NO
Mixed Contacts:
NO
Mounting Type:
BOARD
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-25 °C
Option:
GENERAL PURPOSE
Rated Current (Signal):
7.5 A
Reference Standard:
UL
Shell Material:
GLASS FILLED POLYAMIDE
Termination Type:
SOLDER
Total Number of Contacts:
28
UL Flammability Code:
94V-0

2-1969584-8 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the 2-1969584-8 connector is designed to withstand vibrations and is suitable for use in high-vibration applications. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
The operating temperature range for the 2-1969584-8 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
Yes, the 2-1969584-8 connector is designed to be used in harsh environments and is resistant to moisture, dust, and other contaminants. However, it's essential to follow proper sealing and installation procedures to ensure the connector remains protected.
While the 2-1969584-8 connector is designed for use with AWG 20-24 wires, it may be possible to use it with other wire sizes. However, it's essential to consult with TE Connectivity or a qualified engineer to ensure the connector can accommodate the desired wire size and meet the required performance specifications.

Trust Checks

Community Provided

System Verified

Community Approved

2-1969584-8 Overview

Use the download button to access the 2-1969584-8 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 2-196, or try a keyword search, such as Power Connectors
