2-1971845-6 Frequently Asked Questions (FAQs)

• What is the recommended torque value for the screw terminals?
  The recommended torque value for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this range to ensure reliable connections and prevent damage to the connector.
• Can I use this connector in high-vibration applications?
  Yes, the 2-1971845-6 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
• Is this connector suitable for outdoor or harsh environmental use?
  The 2-1971845-6 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's not designed for prolonged exposure to direct sunlight, high temperatures, or extreme humidity. For outdoor or harsh environmental use, consider using a connector with a higher IP rating or additional protection measures.
• Can I use this connector with wire sizes other than the recommended AWG 20-24?
  While the datasheet recommends using AWG 20-24 wire, it's possible to use other wire sizes. However, you should ensure the wire size is compatible with the connector's terminal design and doesn't compromise the connection's reliability. Consult with TE Connectivity or a qualified engineer for guidance on using alternative wire sizes.

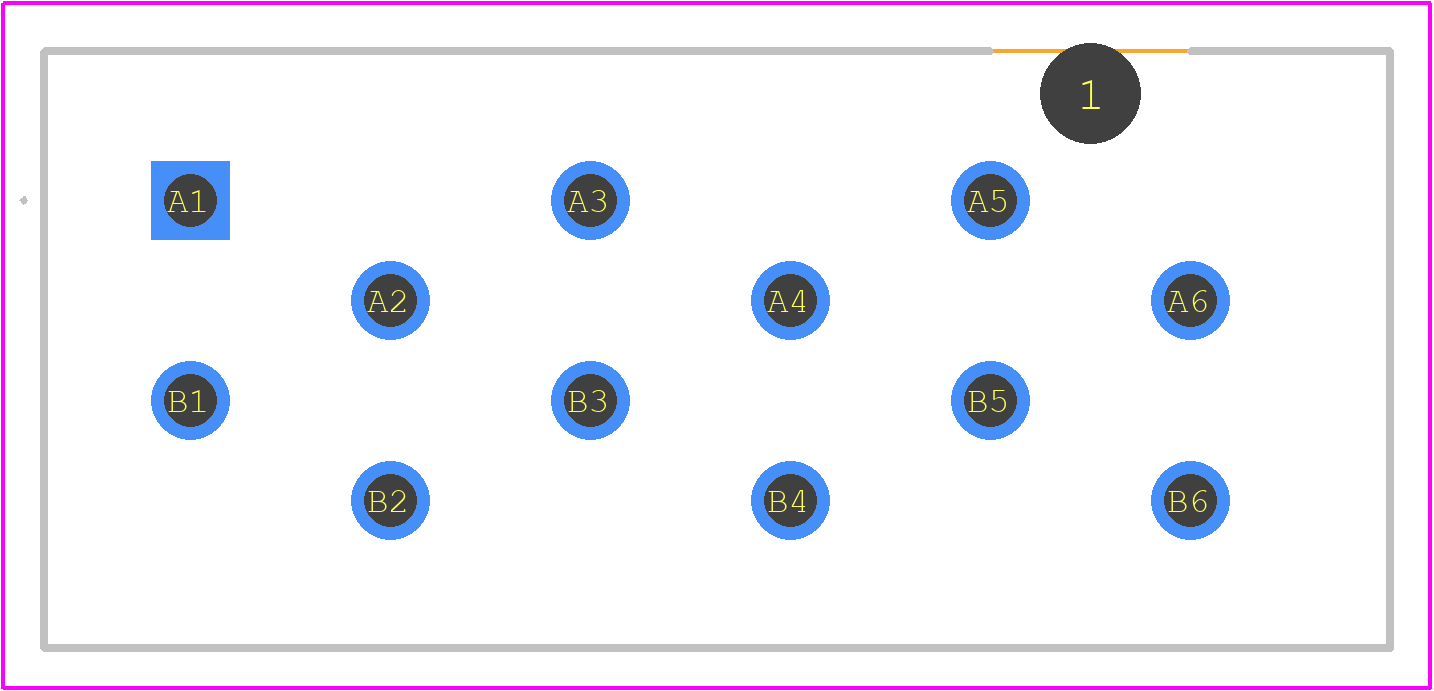

• Are there any specific PCB layout considerations for this connector?
  Yes, to ensure reliable connections and prevent damage to the connector or PCB, follow these layout considerations: maintain a minimum clearance of 1.5 mm between the connector and nearby components, use a solder mask to prevent solder bridging, and ensure the PCB material can withstand the connector's operating temperature range.
