2-1986711-4 - TE Connectivity

Description: Body Features: Primary Product Color Green | Product Orientation Vertical | Lever Color White | Configuration Features: Wire Entry Location Side | Number of Rows 2 | Wire Entry Angle 90° | Number of Positions 24 | Stacking Configuration Side Stackable | Contact Features: Contact Base Material Copper Alloy | Contact Mating Area Length 3.5 MM | Contact Mating Area Plating Material Tin | Contact Current Rating (Max) 16 AMP | Contact Mating Area Length .138 INCH | Dimensions: Wire Size .05 – 3 MMSQ | Wire Si

Download 2-1986711-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

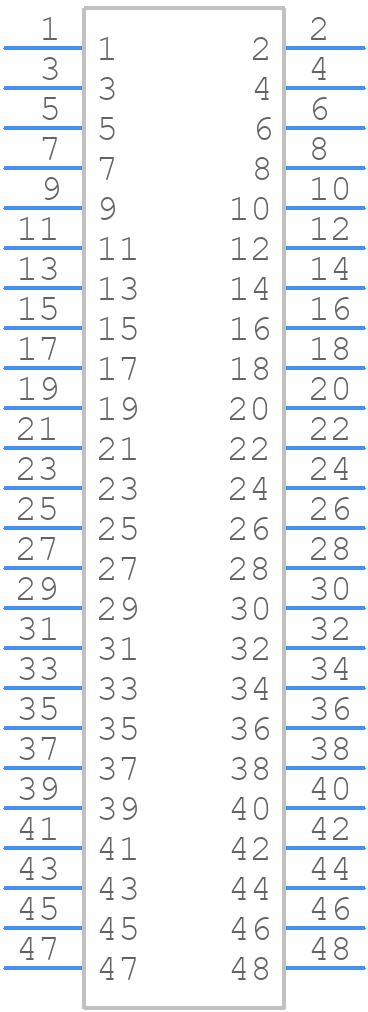

2-1986711-4 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

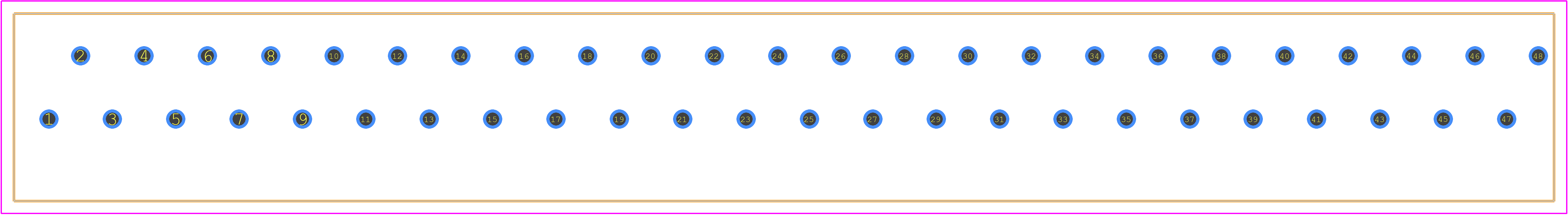

2-1986711-4 - TE Connectivity PCB footprint - Other - Other - 2-1986711-4-1
click to zoom
3D Models
2-1986711-4 - TE Connectivity - 3D model - Other - 2-1986711-4-1
click to zoom

2-1986711-4 Details

  • Manufacturer Part Number:

    2-1986711-4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    9 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • Mounting Type:

    BOARD

  • Number of Rows:

    2

  • Number of Ways:

    24

  • Rated Current:

    16 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    3 mm2

  • Wire Gauge:

    12 AWG
